TM113F Single Phase Current

TM113F asynchronous oil immersed drum motor,all stainless steel material can meet the strict requirements of sanitary and humid environment.This product meets the requirements of high power operation and low noise in the limited transmission system space.This kind of drum motor is typically used in: ●Food processing conveyor ●Pharmaceutical packaging ●Belt conveyors

key word:

TM113F

Category:

TM113F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

TM113F asynchronous oil immersed drum motor,all stainless steel material can meet the strict requirements of sanitary and humid environment.This product meets the requirements of high power operation and low noise in the limited transmission system space.This kind of drum motor is typically used in:
●Food processing conveyor
●Pharmaceutical packaging
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
●All motors with thermal protection
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product sample parameter

AMROLL Drum motor TM113F-1*230V/50Hz

Power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.12/0.16

4

3

60.66

0.15

49.04

868

0.84

345

13

49.36

0.18

39.83

705

41.07

0.21

35.41

627

37.70

0.23

31.87

564

31.59

0.27

25.49

451

25.70

0.34

21.24

376

21.38

0.40

17.68

313

19.63

0.44

15.93

282

2

15.71

0.55

12.88

230

13.07

0.65

10.85

192

12.00

0.71

10.34

183

6

3

60.66

0.08

79.67

1410

1.00

370

15

49.36

0.10

63.73

1128

0.15/0.20

4

3

60.66

0.14

61.30

1085

1.24

345

13

49.36

0.17

49.78

881

41.07

0.21

44.24

783

37.70

0.22

39.83

705

31.59

0.26

31.87

564

25.70

0.33

26.56

470

21.38

0.39

22.15

392

19.63

0.43

19.94

353

2

15.71

0.54

16.27

288

13.07

0.64

13.56

240

12.00

0.70

12.94

229

0.18/0.24

4

3

60.66

0.14

73.56

1302

1.40

355

14

49.36

0.17

59.78

1058

41.07

0.21

53.11

940

37.70

0.22

47.80

846

31.59

0.26

38.25

677

25.70

0.33

31.87

564

21.38

0.39

26.56

470

19.63

0.43

23.90

423

2

15.71

0.54

19.49

345

13.07

0.64

16.27

288

12.00

0.70

15.48

274

0.23/0.31

4

3

49.36

0.17

76.33

1351

1.67

370

15

41.07

0.20

67.86

1201

37.70

0.22

61.08

1081

31.59

0.26

48.87

865

25.70

0.32

40.74

721

21.38

0.38

33.96

601

19.63

0.42

30.57

541

2

15.71

0.53

24.97

442

13.07

0.63

20.79

368

12.00

0.68

19.78

350

Based on the minimum drum length weight, the weight of the electric drum increases about 2kg for every 100mm lengthening of the drum.



TM113F Options list -- Drum motor/Driven Roller

Component description

Drum motor

Driven drum

cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) aluminum end cap

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Single-phase or three-phase asynchronous motor

1



Voltage 1*230V/50Hz or 3*400V/50Hz

1



Dual voltage motor

2



Universal voltage at 50Hz or 60Hz

1



Add motor overheat protector

1



Lubricating oil





Food grade Oil (FDA and USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel bent outlet

2



Stainless steel terminal box

3



PVC cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

2



1- Standard assembly options      2- Non-standard common options     3- Restrictive options, selection should be confirmed with the manufacturer

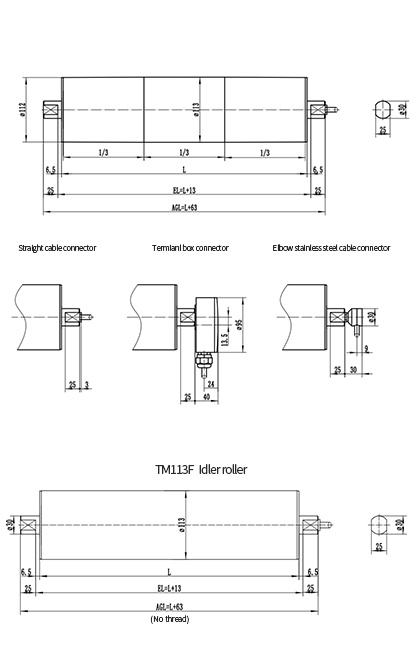

Comprehensive outline dimensional drawing

TM113F Drum motor
