TM138F Three Phase Current

TM138F asynchronous oil immersed drum motor,the effective power of the motor is up to 1.10kW. All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in: ●Medium load belt conveyor ●Meat processing conveyor ●Food processing conveyor ●Packaging machine ●Belt sorting conveyor ●Assembly line ●Belt conveyor for agricultural products ●Warehousing and vehicle loading

key word:

TM138F

Category:

TM138F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

TM138F asynchronous oil immersed drum motor,the effective power of the motor is up to 1.10kW. All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in:
●Medium load belt conveyor
●Meat processing conveyor
●Food processing conveyor
●Packaging machine
●Belt sorting conveyor
●Assembly line
●Belt conveyor for agricultural products
●Warehousing and vehicle loading

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
●All motors with thermal protection
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product sample parameter

AMROLL Drum motor TM138F-3*400V/50Hz

Power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.25/0.34

6

3

58.87

0.11

162.15

2350

0.99

315

14

53.21

0.13

135.10

1958

48.36

0.14

115.85

1679

0.37/0.50

2

3

16.87

1.19

21.87

317

0.92

305

14

15.33

1.32

19.46

282

4

3

58.87

0.17

150.01

2174

1.05

305

14

53.21

0.19

133.31

1932

48.36

0.21

119.99

1739

37.23

0.28

95.98

1391

29.33

0.35

75.00

1087

26.51

0.39

66.65

966

24.10

0.42

60.03

870

18.55

0.55

48.02

696

2

16.87

0.60

43.75

634

15.33

0.67

38.92

564

11.80

0.87

30.64

444

6

3

58.87

0.11

239.98

3478

1.50

350

14

53.21

0.13

199.96

2898

48.36

0.14

171.40

2484

0.55/0.75

2

3

58.87

0.34

111.51

1616

1.28

305

14

53.21

0.38

99.08

1436

48.36

0.42

89.22

1293

37.23

0.54

71.35

1034

29.33

0.69

55.75

808

26.51

0.76

49.54

718

24.10

0.84

44.57

646

18.55

1.10

35.67

517

2

16.87

1.20

32.45

471

15.33

1.30

28.91

419

11.80

1.70

22.77

330

4

3

58.87

0.17

222.94

3231

1.57

350

17

53.21

0.19

198.17

2872

48.36

0.21

178.37

2585

37.23

0.27

142.69

2068

29.33

0.34

111.51

1616

26.51

0.38

99.08

1436

24.10

0.42

89.22

1293

18.55

0.54

71.35

1034

2

16.87

0.60

65.07

943

15.33

0.65

57.82

838

11.80

0.85

45.54

660

0.75//1.02

2

3

58.87

0.34

152.01

2203

1.63

350

17

53.21

0.38

135.10

1958

48.36

0.41

121.65

1763

37.23

0.54

97.29

1410

29.33

0.68

76.04

1102

26.51

0.75

67.55

979

24.10

0.83

60.79

881

18.55

1.08

48.65

705

2

16.87

1.18

44.37

643

15.33

1.30

39.40

571

11.80

1.68

31.05

450

4

3

48.36

0.21

243.23

3525

2.00

350

18

37.23

0.27

194.58

2820

29.33

0.34

152.01

2203

26.51

0.38

135.10

1958

24.10

0.42

121.65

1763

18.55

0.54

97.29

1410

2

16.87

0.60

88.73

1286

15.33

0.66

78.87

1143

11.80

0.85

62.10

900

1.10/1.50

2

3

48.36

0.41

178.37

2585

2.62

350

18

37.23

0.54

142.69

2068

29.33

0.68

111.50

1616

26.51

0.75

99.08

1436

24.10

0.83

89.22

1293

18.55

1.08

71.35

1034

2

16.87

1.18

63.69

923

15.33

1.30

57.82

838

11.80

1.69

45.54

660

Based on the minimum drum length weight, the weight of the electric drum increases about 2.5kg for every 100mm lengthening of the drum.



TM138F Option sheet - Drum motor/Driven Roller

Component description

Drum motor

Driven drum

cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) end cover

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Single-phase or three-phase asynchronous motor

1



Voltage3*400V/50Hz

1



Dual voltage motor

2



Universal voltage at 50Hz or 60Hz

1



Add motor overheat protector

1



Lubricating oil





Food grade Oil (FDA and USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel elbow outlet

2



Stainless steel terminal box

3



PVC cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

2



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

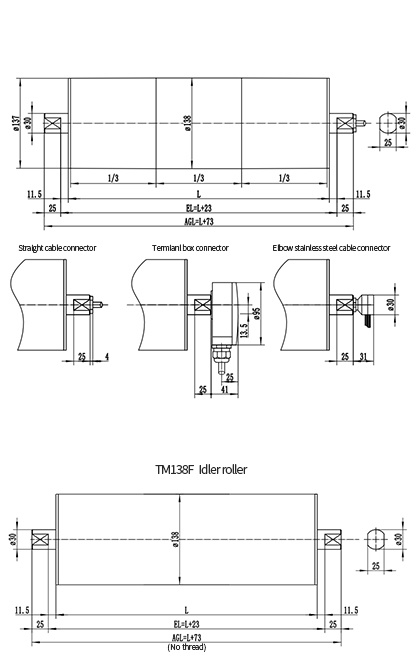

Comprehensive outline dimensional drawing
