DM113A Three Phase Current

DM113A uses permanent magnet synchronous motor, energy saving and high efficiency, its simple and flexible structure greatly reduces the noise, can meet the needs of customers for high power, high speed, ultra-low noise, broadband speed regulation. Suitable for small security checking machine, packing machine, belt scale and other special needs belt conveyor and other conveying equipment.

key word:

DM113A Synchronous oil immersed electric roller

Category:

DM113A

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM113A uses permanent magnet synchronous motor, energy saving and high efficiency, its simple and flexible structure greatly reduces the noise, can meet the needs of customers for high power, high speed, ultra-low noise, broadband speed regulation. Suitable for small security checking machine, packing machine, belt scale and other special needs belt conveyor and other conveying equipment.

Product characteristics：

►Low noise
Permanent magnet synchronous motor and high alloy steel grinding gear, to create extremely low noise.

►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67..

►Motors
Permanent magnet synchronous motor, high efficiency and energy saving, precise adjustment of motor speed.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL Drum motor DM113A-3*220v/94Hz(driver input voltage 1*220v)

power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.12/0.16

8

3

60.66

0.14

47.01

832

0.50

360

15

49.36

0.16

42.38

750

41.07

0.20

33.90

600

37.70

0.22

30.79

545

31.59

0.26

26.10

462

25.70

0.32

21.19

375

21.38

0.38

17.85

316

19.63

0.42

16.16

286

2

15.71

0.52

12.77

226

13.07

0.62

10.96

194

12.00

0.68

9.94

176

0.18/0.24

8

3

60.66

0.14

70.51

1248

0.75

360

15

49.36

0.16

63.56

1125

41.07

0.20

50.85

900

37.70

0.22

46.22

818

31.59

0.26

39.10

692

25.70

0.32

31.81

563

21.38

0.38

26.78

474

19.63

0.42

24.24

429

2

15.71

0.52

19.15

339

13.07

0.62

16.39

290

12.00

0.68

14.97

265

0.23/0.31

8

3

49.36

0.16

78.82

1395

0.96

360

15

41.07

0.20

64.98

1150

37.70

0.22

59.04

1045

31.59

0.26

50.00

885

25.70

0.32

40.62

719

21.38

0.38

34.18

605

19.63

0.42

30.96

548

2

15.71

0.52

24.52

434

13.07

0.62

20.96

371

12.00

0.68

19.10

338

0.25/0.34

8

3

49.36

0.16

82.99

1469

1.05

360

15

41.07

0.20

73.73

1305

37.70

0.22

66.39

1175

31.59

0.26

53.11

940

25.70

0.32

44.29

784

21.38

0.38

36.89

653

19.63

0.42

33.22

588

2

15.71

0.52

27.12

480

13.07

0.62

22.60

400

12.00

0.68

21.47

380

0.37/0.50

8

3

31.59

0.26

78.60

1391

1.55

360

15

25.70

0.32

66.50

1159

21.38

0.38

54.59

966

19.63

0.42

49.13

870

2

15.71

0.52

40.14

710

13.07

0.62

33.45

592

12.00

0.68

31.86

564

0.55/0.75

8

3

31.59

0.26

115.99

2053

2.30

360

15

25.70

0.32

97.12

1719

21.38

0.38

81.76

1447

19.63

0.42

74.02

1310

2

15.71

0.52

58.59

1037

13.07

0.62

50.12

887

12.00

0.68

45.71

809

Based on the minimum drum length weight, the weight of the electric drum increases about 2kg for every 100mm lengthening of the drum.



DM113A Options table - Drum motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Carbon steel coronal cylinder

1

1

Carbon steel straight barrel

2

2

Stainless steel coronal cylinder

2

2

Stainless steel straight cylinder

2

2

Front and rear end covers





Cast aluminum end cover

1

1

Stainless steel end cover

2

2

Front and rear axle





Carbon steel shaft

1

1

Stainless steel shaft

2

2

Gear box, rear flange





Cast aluminum

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Permanent magnet synchronous motor

1



Voltage3*220v/94Hz

1



Lubricating oil





150 gear oil

1



Low temperature ambient oil

2



Food grade oil & Fat (FDA  And USDA)

2



Electrical connection





Straight outlet

1



Bent outlet

2



Stainless steel elbow outlet

3



Cast aluminum terminal box

2



Stainless steel terminal box

3



PVC  cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options     2- Non-standard common options     3- Restrictive options, selection should be confirmed with the manufacturer

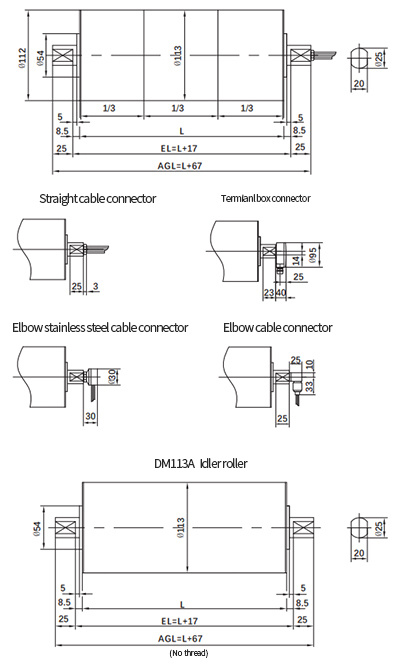

Comprehensive outline dimensional drawing
