DM100H Three Phase Current
DM100H electric roller uses permanent magnet synchronous motor, which is energy-saving and efficient. Its simple and reliable structure greatly reduces the installation space, and can meet customers' needs of high power, high speed, wide frequency speed regulation, frequent start and stop. Suitable for dynamic weighing, balance wheel sorting and other special needs belt conveyor and other conveying equipment.
key word:
Category:
DM100H
样册下载：
Tel：
Email：
Product application：
DM100H Drum motor uses permanent magnet synchronous motor, which is energy-saving and efficient. Its simple and reliable structure greatly reduces the installation space, and can meet customers' needs of high power, high speed, wide frequency speed regulation, frequent start and stop. Suitable for dynamic weighing, balance wheel sorting and other special needs belt conveyor and other conveying equipment.
Product characteristics：
►Compact, high power density, high speed
The barrel diameter of 103mm can output rated mechanical power of 1.0kW and high speed above 2.5m/s.
►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67.
►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.
►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.
|
AMROLL Drum motor DM100H-3× 220V/252Hz(driver input voltage 1× 220V) |
|||||||||
|
Power |
Motor |
Gear |
Gear |
Nominal band speed |
Torque |
Traction force |
Rated current |
Minimum barrel length |
Minimum barrel length weight |
|
1.00/1.34 |
8 |
2 |
7.88 |
2.56 |
19.91 |
387 |
4.30 |
420 |
14 |
|
Based on the minimum drum length weight, the weight of the electric drum increases about 5.35kg for every 100mm lengthening of the drum. |
|||||||||
|
Component description |
Drum motor |
Driven drum |
|
Cylinder |
|
|
|
Carbon steel coronal cylinder |
1 |
1 |
|
Carbon steel straight barrel |
2 |
2 |
|
Stainless steel coronal cylinder |
2 |
2 |
|
Stainless steel straight cylinder |
2 |
2 |
|
Front and rear end covers |
|
|
|
Cast iron end cap |
1 |
1 |
|
Stainless steel end cover |
2 |
2 |
|
Front and rear axle |
|
|
|
Carbon steel shaft |
1 |
1 |
|
Stainless steel shaft |
2 |
2 |
|
Gear box, rear flange |
|
|
|
Cast iron |
1 |
1 |
|
Motor |
|
|
|
Permanent magnet synchronous motor |
1 |
|
|
Voltage3*220V |
1 |
|
|
Lubricating oil |
|
|
|
150 gear oil |
1 |
|
|
Low temperature ambient oil |
2 |
|
|
Food grade oil & Fat (FDA And USDA) |
2 |
|
|
Electrical connection |
|
|
|
Straight outlet |
1 |
|
|
Bend out of line |
2 |
|
|
PVC cable |
1 |
|
|
Low-smoke halogen free cable |
2 |
|
|
Other options |
|
|
|
Reverse check |
2 |
|
|
Can be installed vertically or tilted |
3 |
|
|
Connected frequency converter |
1 (Sparks Frequency converter is recommended) |
|
|
1- Standard assembly options 2- Non-standard common options 3- Restrictive options, selection should be confirmed with the manufacturer |
||

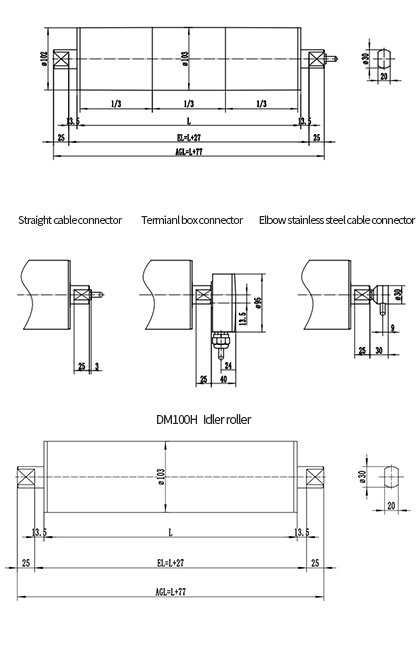

DM100H Drum motor

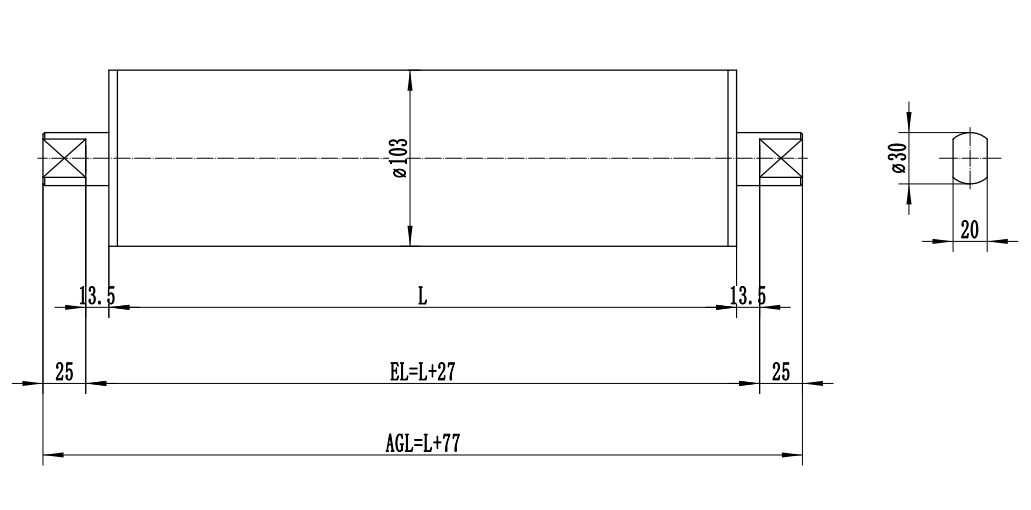

UT100H driven roller
