DM138H electric roller uses permanent magnet synchronous motor, energy saving and high efficiency, mainly used for medium load belt conveying equipment, rated output power can reach 1.5kW, can meet the frequent start and stop and wide frequency speed regulation. It can be used in security inspection machine (airport and station), airport baggage handling system, packaging conveyor, power belt scale, postal sorting, ordinary belt conveyor, agricultural products sorting machine and other conveying equipment.

key word:

DM138H

Category:

DM138H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM138H Drum motor uses permanent magnet synchronous motor, energy saving and high efficiency, mainly used for medium load belt conveying equipment, rated output power can reach 1.5kW, can meet the frequent start and stop and wide frequency speed regulation. It can be used in security inspection machine (airport and station), airport baggage handling system, packaging conveyor, power belt scale, postal sorting, ordinary belt conveyor, agricultural products sorting machine and other conveying equipment.

Product characteristics：

►Compact, high power density, high speed
The 141mm barrel can output rated mechanical power of 1.5kW and high speed of 2.5m/s.

►High protection level
Double shaft sealing system, Sealing system-degree of protection IP66/67.

►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL  Synchronous electric drum DM138H-3*220V/100Hz (driver input voltage 1*220V)

Power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.75/1.02

4

3

58.87

0.37

136.79

1982

2.43

400

24

53.21

0.41

123.64

1792

48.36

0.45

112.37

1628

37.23

0.58

86.51

1254

29.33

0.74

68.15

988

26.51

0.82

61.60

893

24.10

0.90

56.00

812

18.55

1.17

43.10

625

2

16.87

1.28

39.59

574

15.33

1.41

35.98

521

11.80

1.83

27.69

401

1.10/1.50

4

3

58.87

0.37

200.62

2907

3.56

400

24

53.21

0.41

181.33

2628

48.36

0.45

164.81

2388

37.23

0.58

126.88

1839

29.33

0.74

99.95

1448

26.51

0.82

90.34

1309

24.10

0.90

82.13

1190

18.55

1.17

63.22

916

2

16.87

1.28

58.07

842

15.33

1.41

52.77

765

11.80

1.83

40.62

589

1.50/2.04

4

3

58.87

0.37

273.58

3965

4.85

400

24

53.21

0.41

247.27

3583

48.36

0.45

224.73

3257

37.23

0.58

173.01

2507

29.33

0.74

136.30

1975

26.51

0.82

123.20

1785

24.10

0.90

112.00

1623

18.55

1.17

86.20

1249

2

16.87

1.28

79.19

1148

15.33

1.41

71.96

1043

11.80

1.83

55.39

803

8.89

2.50

41.73

592

With the minimum barrel length weight as the standard, every barrel lengthening 100mm  The weight of the Drum motor increases about 3.25kg.



DM138H Option sheet - Drum motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Carbon steel coronal cylinder

1

1

Carbon steel straight barrel

2

2

Stainless steel coronal cylinder

2

2

Stainless steel straight cylinder

2

2

Front and rear end covers





Cast iron end cap

1

1

Stainless steel end cover

2

2

Front and rear axle





Carbon steel shaft

1

1

Stainless steel shaft

2

2

Gear box, rear flange





Cast iron

1

1

Motor





Permanent magnet synchronous motor

1



voltage3*220V

1



Lubricating oil





150 gear oil

1



Low temperature ambient oil

2



Food grade oil & Fat (FDA  And USDA)

2



Electrical connection





Straight outlet

1



Bend out of line

2



PVC  cable

1



Low-smoke halogen free cable

2



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options     3- Restrictive options, selection should be confirmed with the manufacturer

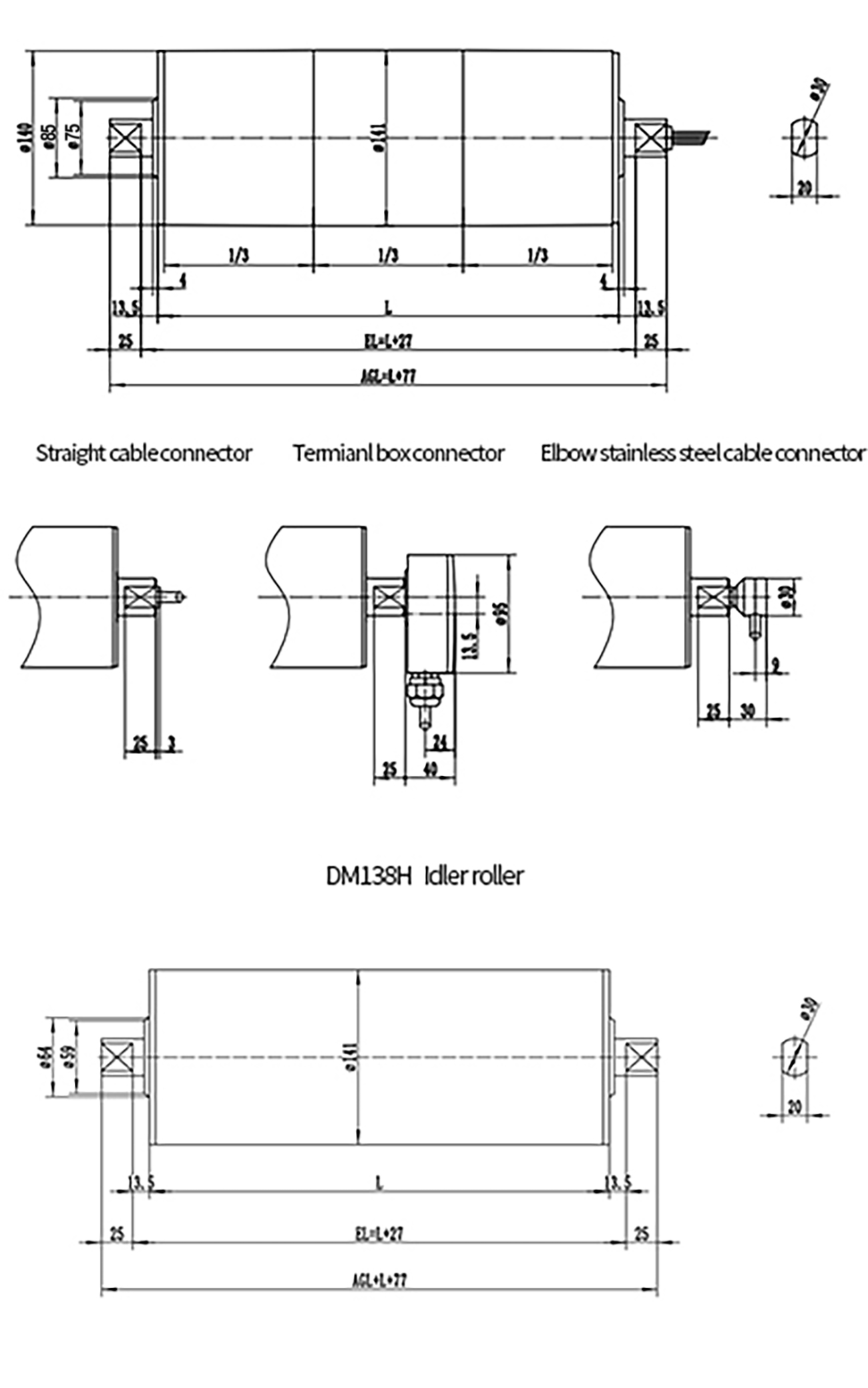

Comprehensive outline dimensional drawing

DM138H Drum motor



Previous page

None

None

Next page

Previous page

None

Next page

None
