DM165H Three Phase Current

DM165H electric roller uses permanent magnet synchronous motor, energy saving and high efficiency, mainly used for heavy load belt conveyor equipment, rated output power can reach 3.0kW, can meet the frequent start and stop and wide frequency speed regulation. The large size of the shape to ensure the roller durable, impact resistance, strong torque, is the best choice of large load conveying equipment. Mainly used in airport baggage conveyor system, packaging conveyor, postal sorting conveyor, warehouse handling belt telescopic car, assembly production line, agricultural belt conveyor and ordinary conveyor and other conveyor systems.

key word:

DM165H

Category:

DM165H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM165H Drum motor uses permanent magnet synchronous motor, energy saving and high efficiency, mainly used for heavy load belt conveyor equipment, rated output power can reach 3.0kW, can meet the frequent start and stop and wide frequency speed regulation. The large size of the shape to ensure the roller durable, impact resistance, strong torque, is the best choice of large load conveying equipment. Mainly used in airport baggage conveyor system, packaging conveyor, postal sorting conveyor, warehouse handling belt telescopic car, assembly production line, agricultural belt conveyor and ordinary conveyor and other conveyor systems.

Product characteristics：

►Compact, high power density, high speed
The barrel diameter of 166.5mm can output a rated mechanical power of 3.0kW and a high speed of 2.11m/s. Customers can achieve even higher speeds with custom extensions.

►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67.

►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL synchronous electric drum DM165H-3*380V/100Hz (driver input voltage 3*380V)

Power
[kW/hp]

Motor
Pole number

Gear
series

gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

 1.10/1.50

4

3

62.37

0.42

211.91

2553

2.30

470

51

46.56

0.56

158.20

1906

39.31

0.66

133.56

1609

28.71

0.91

97.55

1175

24.23

1.08

82.33

992

2

19.64

1.33

67.40

812

14.66

1.78

50.31

606

12.38

2.11

42.49

512

 1.50/2.04

4

3

62.37

0.42

288.97

3481

3.10

470

51

46.56

0.56

215.72

2599

39.31

0.66

182.13

2194

28.71

0.91

133.02

1603

24.23

1.08

112.26

1352

2

19.64

1.33

91.91

1107

14.66

1.78

68.61

827

12.38

2.11

57.94

698

 2.20/3.00

4

3

62.37

0.42

423.82

5106

4.20

470

51

46.56

0.56

316.39

3812

39.31

0.66

267.12

3218

28.71

0.91

195.09

2350

24.23

1.08

164.65

1984

2

19.64

1.33

134.81

1624

14.66

1.78

100.63

1212

12.38

2.11

84.98

1024

 3.00/4.00

4

3

46.56

0.56

431.44

5198

5.70

470

51

39.31

0.66

364.26

4388

28.71

0.91

266.04

3205

24.23

1.08

224.52

2705

2

19.64

1.33

183.83

2215

14.66

1.78

137.22

1653

12.38

2.11

115.88

1396

With the minimum drum length weight as the standard, the weight of the electric drum increases by about 4kg when the drum length increases by 100mm.



DM165H Option Sheet - Drum motor/Driven Roller

Component description

Drum motor

Driven drum

cylinder





Carbon steel coronal cylinder

1

1

Carbon steel straight barrel

2

2

Stainless steel coronal cylinder

2

2

Stainless steel straight cylinder

2

2

Front and rear end covers





Cast iron end cap

1

1

Stainless steel end cover

2

2

Front and rear axle





Carbon steel shaft

1

1

Stainless steel shaft

2

2

Gear box, rear flange





Cast iron

1

1

Motor





Permanent magnet synchronous motor

1



Voltage3*380v

1



Lubricating oil





150 gear oil

1



Low temperature ambient oil

2



Food grade oil & Fat (FDA  And USDA)

2



Electrical connection





Straight outlet

1



Bend out of line

2



PVC  cable

1



Low-smoke halogen free cable

2



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

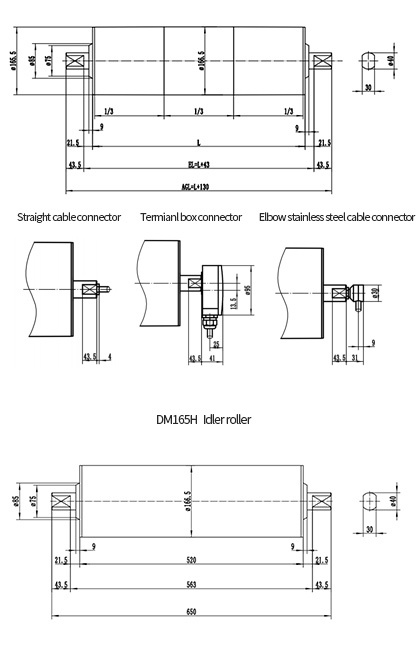

Comprehensive outline dimensional drawing
