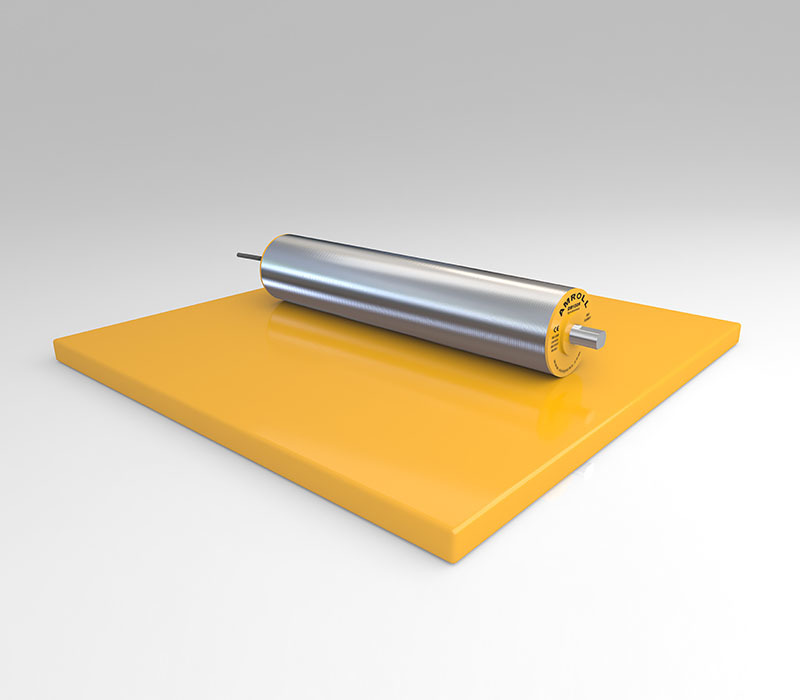

DM216H electric roller uses permanent magnet synchronous motor, energy saving and high efficiency, it is a heavy roller designed for conveying single large weight items or bulk materials. The maximum rated output power is up to 5.5kW, which can meet frequent start-stop and broadband speed regulation. Mainly used in packaging conveyor, belt scale, postal sorting conveyor, warehouse handling belt telescopic truck, agricultural belt conveyor, bulk conveyor, brick and wood conveyor, climbing conveyor and other conveyor systems.

key word:

DM216H

Category:

DM216H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM216H Drum motor uses permanent magnet synchronous motor, energy saving and high efficiency, it is a heavy roller designed for conveying single large weight items or bulk materials. The maximum rated output power is up to 5.5kW, which can meet frequent start-stop and broadband speed regulation. Mainly used in packaging conveyor, belt scale, postal sorting conveyor, warehouse handling belt telescopic truck, agricultural belt conveyor, bulk conveyor, brick and wood conveyor, climbing conveyor and other conveyor systems.

Product characteristics：

►High power and high speed
With a rated output of up to 5.5kW, high speeds of 2.5m/s can be easily achieved, with customers able to achieve even higher speeds with custom extensions.

►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67.

►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL AC synchronous Drum motor DM216H-3× 380V/114Hz

Power
[kw/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

 4.30/5.77

4

3

48.58

0.80

568.98

5244

8.20

510

76

41.26

0.94

483.25

4454

31.73

1.22

371.63

3425

27.24

1.42

319.04

2940

2

24.61

1.60

291.15

2683

20.11

1.92

237.91

2193

15.46

2.50

182.90

1686

 5.50/7.33

4

2

24.61

1.60

372.40

3432

10.00

510

77

20.11

1.92

304.31

2804

15.46

2.50

233.94

2156

Based on the minimum drum length weight, the weight of the electric drum increases about 5kg for every 100mm lengthening of the drum.



DM216H Option Sheet -- Drum motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Carbon steel coronal cylinder

1

1

Carbon steel straight barrel

2

2

Stainless steel coronal cylinder

2

2

Stainless steel straight cylinder

2

2

Front and rear end covers





Cast iron end cap

1

1

Stainless steel end cover

2

2

Front and rear axle





Carbon steel shaft

1

1

Stainless steel shaft

2

2

Gear box, rear flange





Cast iron

1

1

Motor





Permanent magnet synchronous motor

1



Voltage3*380v

1



Lubricating oil





150 gear oil

1



Low temperature ambient oil

2



Food grade oil & Fat (FDA  And USDA)

2



Electrical connection





Straight outlet

1



Bend out of line

2



PVC  cable

1



Low-smoke halogen free cable

2



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

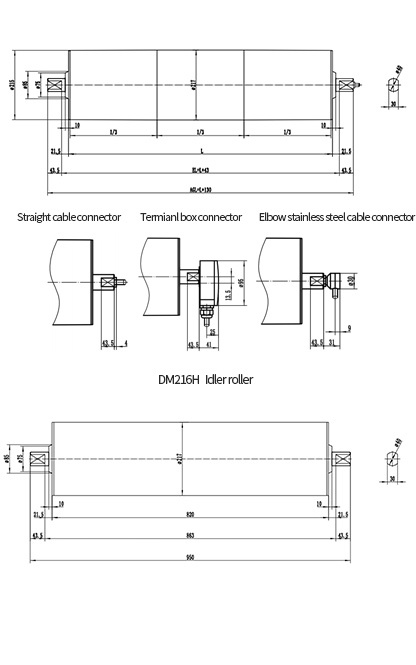

Comprehensive outline dimensional drawing

DM216H Drum motor
