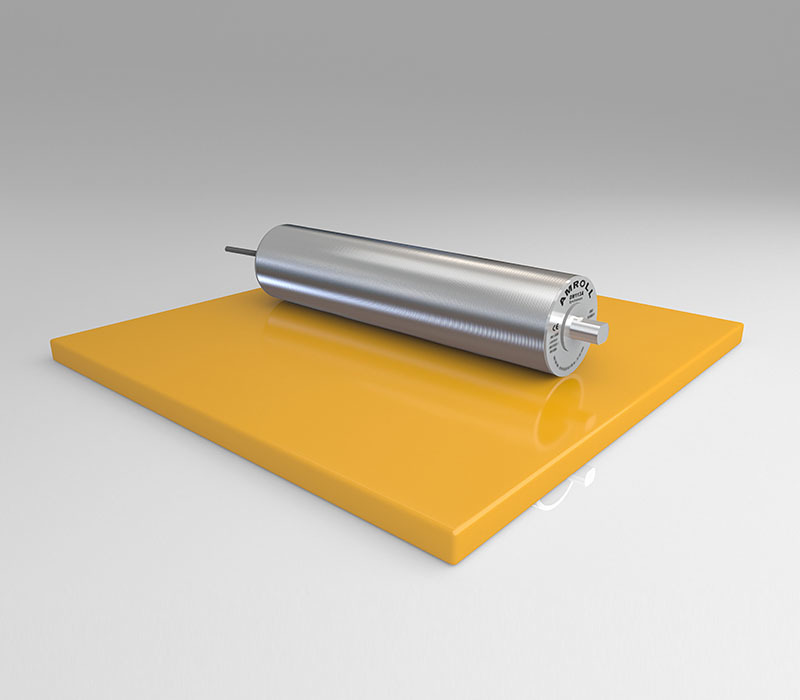

DM80F Direct Current

DM80F electric roller uses permanent magnet synchronous motor, energy efficient, its simple and reliable structure greatly reduces noise, to meet customer requirements of high power, high speed, ultra-low noise, broadband speed regulation. All stainless steel material can meet the sanitary environment, humid environment and other strict requirements, suitable for small security inspection machine, packaging machine, belt scale and other belt conveyor conveyor equipment.

key word:

DM80F

Category:

DM80F

样册下载：

Tel：

Email：

Product application and characteristics

Product application：

DM80F Drum motor uses permanent magnet synchronous motor, energy efficient, its simple and reliable structure greatly reduces noise, to meet customer requirements of high power, high speed, ultra-low noise, broadband speed regulation. All stainless steel material can meet the sanitary environment, humid environment and other strict requirements, suitable for small security inspection machine, packaging machine, belt scale and other belt conveyor conveyor equipment.

Product sample parameter

AMROLL Synchronous Drum motor DM80F-48V DC
Power [kW/hp]	Motor series	Gear series	Gear Speed ratio	Nominal band speed [m/s]	Torque [Nm]	Traction force [N]	Rated current [A]	Minimum barrel length [mm]	Minimum barrel length Weight[kg]
0.09/0.12	4	3	74.79	0.16	21.89	534	2.25	320	6
			55.11	0.22	16.15	394
			37.89	0.32	11.11	271
		2	28.95	0.42	8.57	209
			21.33	0.57	6.31	154
			14.67	0.83	4.35	106
			11.81	1.03	3.49	85
0.12/0.16	4	3	55.11	0.22	21.53	525	3.00	320	6
		3	37.89	0.32	14.80	361
		2	28.95	0.42	11.44	279
			21.33	0.57	8.41	205
			14.67	0.83	5.78	141
			11.81	1.03	4.67	114
Based on the minimum drum length weight, the weight of the electric drum increases about 1.2kg when the drum length increases by 100mm.

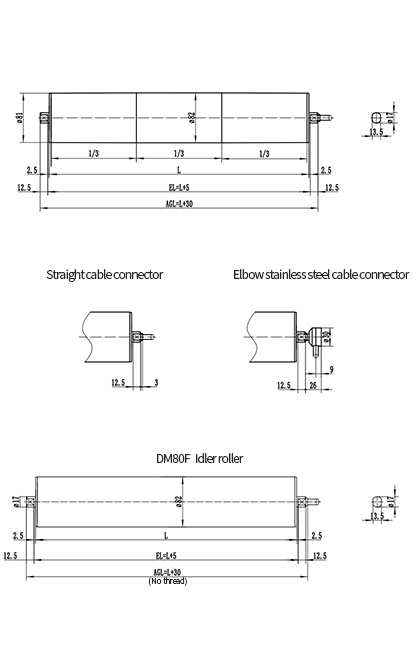

DM80F options table — Drum motor/driven roller

Component description	Drum motor	Driven drum
Cylinder
Stainless steel (Standard 304) coronal cylinder	1	1
Stainless steel (standard 304) straight barrel	2	2
Stainless steel (Standard 304) straight barrel + key	2	2
Front and rear end covers
Stainless steel (standard 304) end cover	1	1
Front and rear axle
Stainless steel (standard 304) shaft	1	1
Motor
Permanent magnet synchronous motor	1
The voltage is DC 48V	1
Lubricating oil
Food grade Oil (FDA and USDA)	2
Electrical connection
Stainless steel straight outlet	1
Stainless steel elbow outlet	2
PVC cable	1
Low-smoke halogen free cable	2
Other options
Reverse check	2
Connected frequency converter	1 (Sparks Frequency converter is recommended)
1- Standard assembly options 2- Non-standard common options
