DM113F Three Phase Current

DM113F electric roller using permanent magnet synchronous motor, energy saving and efficient, its simple and reliable structure greatly reduces the noise, can meet the needs of customers high power, high speed, low noise, broadband speed regulation, all stainless steel material can meet the sanitary environment, humid environment and other strict requirements, suitable for small security inspection machine, packaging machine, Belt scales and other belt conveyors and other conveyer equipment.

key word:

DM113F

Category:

DM113F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM113F Drum motor using permanent magnet synchronous motor, energy saving and efficient, its simple and reliable structure greatly reduces the noise, can meet the needs of customers high power, high speed, low noise, broadband speed regulation, all stainless steel material can meet the sanitary environment, humid environment and other strict requirements, suitable for small security inspection machine, packaging machine, Belt scales and other belt conveyors and other conveyer equipment.



Product sample parameter

AMROLL Drum motor DM113F-3*220V/94Hz(driver input voltage 1*220V)

Power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.12/0.16

8

3

60.66

0.14

47.01

832

0.50

370

15

49.36

0.16

42.38

750

41.07

0.20

33.90

600

37.70

0.22

30.79

545

31.59

0.26

26.10

462

25.70

0.32

21.19

375

21.38

0.38

17.85

316

19.63

0.42

16.16

286

2

15.71

0.52

12.77

226

13.07

0.62

10.96

194

12.00

0.68

9.94

176

0.18/0.24

8

3

60.66

0.14

70.51

1248

0.75

370

15

49.36

0.16

63.56

1125

41.07

0.20

50.85

900

37.70

0.22

46.22

818

31.59

0.26

39.10

692

25.70

0.32

31.81

563

21.38

0.38

26.78

474

19.63

0.42

24.24

429

2

15.71

0.52

19.15

339

13.07

0.62

16.39

290

12.00

0.68

14.97

265

0.23/0.31

8

3

49.36

0.16

78.82

1395

0.96

370

15

41.07

0.20

64.98

1150

37.70

0.22

59.04

1045

31.59

0.26

50.00

885

25.70

0.32

40.62

719

21.38

0.38

34.18

605

19.63

0.42

30.96

548

2

15.71

0.52

24.52

434

13.07

0.62

20.96

371

12.00

0.68

19.10

338

0.25/0.34

8

3

49.36

0.16

82.99

1469

1.05

370

15

41.07

0.20

73.73

1305

37.70

0.22

66.39

1175

31.59

0.26

53.11

940

25.70

0.32

44.29

784

21.38

0.38

36.89

653

19.63

0.42

33.22

588

2

15.71

0.52

27.12

480

13.07

0.62

22.60

400

12.00

0.68

21.47

380

0.37/0.50

8

3

31.59

0.26

78.60

1391

1.55

370

15

25.70

0.32

66.50

1159

21.38

0.38

54.59

966

19.63

0.42

49.13

870

2

15.71

0.52

40.14

710

13.07

0.62

33.45

592

12.00

0.68

31.86

564

0.55/0.75

8

3

31.59

0.26

115.99

2053

2.30

370

15

25.70

0.32

97.12

1719

21.38

0.38

81.76

1447

19.63

0.42

74.02

1310

2

15.71

0.52

58.59

1037

13.07

0.62

50.12

887

12.00

0.68

45.71

809

Based on the minimum drum length weight, the weight of the electric drum increases about 2kg for every 100mm lengthening of the drum.



DM113F Options table - Drum motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) aluminum end cap

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Permanent magnet synchronous motor

1



Voltage3*220V/94Hz

1



Lubricating oil





Food grade Oil (FDA and USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel bent outlet

2



Stainless steel terminal box

3



PVC cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

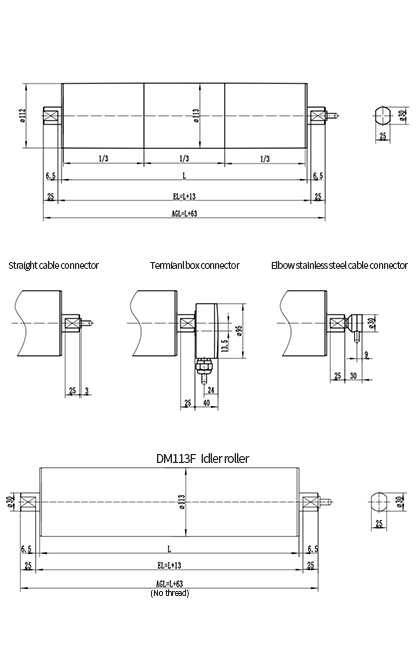

Comprehensive outline dimensional drawing
