DM138F Three Phase Current

DM138F uses permanent magnet synchronous motor, high efficiency and energy saving, its simple and flexible structure greatly reduces the noise, can meet the needs of customers for high power, high speed, ultra-low noise, broadband speed regulation. All stainless steel material can meet the sanitary environment, wet environment and other harsh requirements, the effective power of the motor up to 1.50kW, mainly used in medium load belt conveyor equipment, such as meat processing conveyor, food processing conveyor, packaging conveyor, belt sorting conveyor, assembly line, agricultural belt conveyor, etc.

key word:

DM138F

Category:

DM138F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM138F uses permanent magnet synchronous motor, high efficiency and energy saving, its simple and flexible structure greatly reduces the noise, can meet the needs of customers for high power, high speed, ultra-low noise, broadband speed regulation. All stainless steel material can meet the sanitary environment, wet environment and other harsh requirements, the effective power of the motor up to 1.50kW, mainly used in medium load belt conveyor equipment, such as meat processing conveyor, food processing conveyor, packaging conveyor, belt sorting conveyor, assembly line, agricultural belt conveyor, etc.



Product sample parameter

AMROLL synchronous electric Drum DM138F-3*220V/100Hz (driver input voltage 1*220V)

Power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

0.75/1.02

4

3

58.87

0.37

136.79

1982

2.43

380

24

53.21

0.41

123.64

1792

48.36

0.45

112.37

1628

37.23

0.58

86.51

1254

29.33

0.74

68.15

988

26.51

0.82

61.60

893

24.10

0.90

56.00

812

18.55

1.17

43.10

625

2

16.87

1.28

39.59

574

15.33

1.41

35.98

521

11.80

1.83

27.69

401

1.10/1.50

4

3

58.87

0.37

200.62

2907

3.56

380

24

53.21

0.41

181.33

2628

48.36

0.45

164.81

2388

37.23

0.58

126.88

1839

29.33

0.74

99.95

1448

26.51

0.82

90.34

1309

24.10

0.90

82.13

1190

18.55

1.17

63.22

916

2

16.87

1.28

58.07

842

15.33

1.41

52.77

765

11.80

1.83

40.62

589

1.50/2.04

4

3

58.87

0.37

273.58

3965

4.85

380

24

53.21

0.41

247.27

3583

48.36

0.45

224.73

3257

37.23

0.58

173.01

2507

29.33

0.74

136.30

1975

26.51

0.82

123.20

1785

24.10

0.90

112.00

1623

18.55

1.17

86.20

1249

2

16.87

1.28

79.19

1148

15.33

1.41

71.96

1043

11.80

1.83

55.39

803

Based on the minimum drum length weight, the weight of the electric drum increases about 3.25kg when the drum body is lengthened by 100mm.



DM138F options list — Drum motor/driven roller

Component description

Drum motor

Driven drum

Cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) end cover

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Permanent magnet synchronous motor

1



Voltage3*220V/100Hz

1



Lubricating oil





Food grade Oil (FDA and USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel elbow outlet

2



Stainless steel terminal box

3



PVC cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

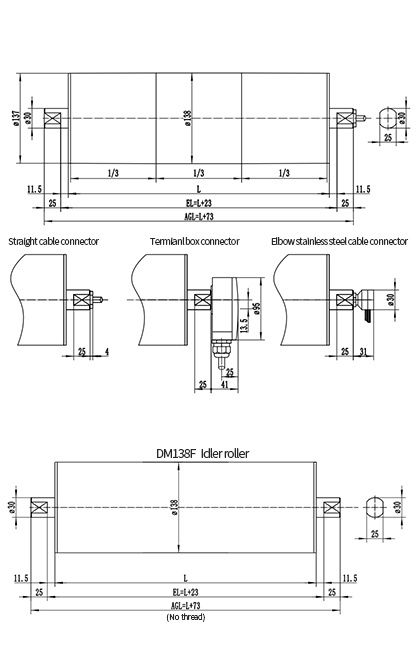

Comprehensive outline dimensional drawing

DM138F Drum motor







Previous page

None

None

Next page

Previous page

None

Next page

None

Related downloads

DM138F Product album
