DM165F electric roller uses permanent magnet synchronous motor, energy saving and efficient, its simple and reliable structure greatly reduces the noise, can meet the needs of customers for high power, high speed, low noise, wide frequency speed regulation, mainly used in heavy load belt conveying equipment, it has strong appearance, impact resistance and strong torque and other significant characteristics, Is the meat processing conveyor, food processing conveyor, packaging conveyor, belt sorting conveyor, assembly line, agricultural belt conveyor, warehouse handling belt telescopic car and other large load conveying equipment the best choice, at the same time its stainless steel design can cope with the health environment, wet environment.

key word:

DM165F

Category:

DM165F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM165F Drum motor uses permanent magnet synchronous motor, energy saving and efficient, its simple and reliable structure greatly reduces the noise, can meet the needs of customers for high power, high speed, low noise, wide frequency speed regulation, mainly used in heavy load belt conveying equipment, it has strong appearance, impact resistance and strong torque and other significant characteristics, Is the meat processing conveyor, food processing conveyor, packaging conveyor, belt sorting conveyor, assembly line, agricultural belt conveyor, warehouse handling belt telescopic car and other large load conveying equipment the best choice, at the same time its stainless steel design can cope with the health environment, wet environment.



Product characteristics：

►material
All stainless steel

►Low noise
Permanent magnet synchronous motor and high alloy steel grinding gear, to create extremely low noise.

►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67.

►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL synchronous electric Drum DM165F-3*380V/100Hz (driver input voltage 3*380V)

power
[kW/hp]

Motor
series

Gear
series

Gear
Speed ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

 1.10/1.50

4

3

62.37

0.42

211.91

2568

2.30

470

51

46.56

0.56

158.20

1917

39.31

0.66

133.56

1619

28.71

0.90

97.55

1182

24.23

1.07

82.33

998

2

19.64

1.32

67.40

817

14.66

1.77

50.31

610

12.38

2.09

42.49

515

 1.50/2.04

4

3

62.37

0.42

288.97

3502

3.10

470

51

46.56

0.56

215.72

2615

39.31

0.66

182.13

2207

28.71

0.90

133.02

1612

24.23

1.07

112.26

1361

2

19.64

1.32

91.91

1114

14.66

1.77

68.61

832

12.38

2.09

57.94

702

 2.20/ 3.00

4

3

62.37

0.42

423.82

5137

4.20

470

51

46.56

0.56

316.39

3835

39.31

0.66

267.12

3238

28.71

0.90

195.09

2365

24.23

1.07

164.65

1996

2

19.64

1.32

134.81

1634

14.66

1.77

100.63

1220

12.38

2.09

84.98

1030

 3.00/4.00

4

3

46.56

0.56

431.44

5229

5.70

470

51

39.31

0.66

364.26

4415

28.71

0.90

266.04

3224

24.23

1.07

224.52

2721

2

19.64

1.32

183.83

2228

14.66

1.77

137.22

1663

12.38

2.09

115.88

1404

With the minimum drum length weight as the standard, the weight of the electric drum increases by about 4kg when the drum length increases by 100mm.



DM165F Option sheet -- Drum motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) end cover

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Permanent magnet synchronous motor

1



Voltage3*380V/100Hz

1



Lubricating oil





Food grade Oil (FDA and USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel elbow outlet

2



Stainless steel terminal box

3



PVC cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

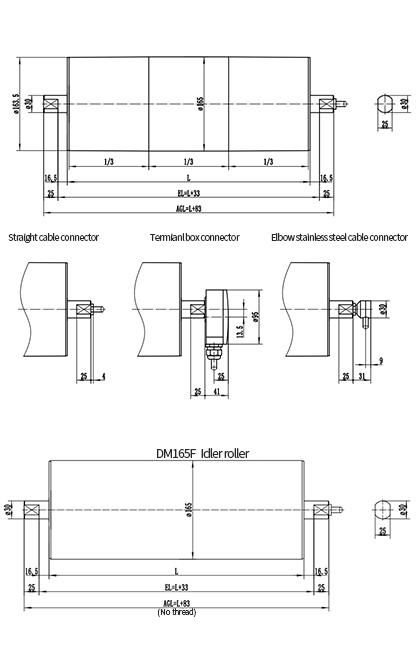

Comprehensive outline dimensional drawing

DM165F Drum motor
