DM216F Three Phase Current

DM216F electric roller uses permanent magnet synchronous motor, energy saving and high efficiency, its simple and reliable structure greatly reduces the noise, can meet the needs of customers for high power, high speed, low noise, broadband speed regulation, all stainless steel material can meet the sanitary environment, humid environment and other strict requirements. It is mainly used for conveying single large weight items or bulk materials, such as slaughtering meat segmentation equipment, food processing conveyor, agricultural belt conveyor, climbing conveyor, etc.

key word:

DM216F Synchronous oil immersed electric roller

Category:

DM216F

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product application：

DM216F Drum motor uses permanent magnet synchronous motor, energy saving and high efficiency, its simple and reliable structure greatly reduces the noise, can meet the needs of customers for high power, high speed, low noise, wide frequency speed regulation, mainly used in heavy load belt conveying equipment, it has strong appearance, impact resistance and strong torque and other significant characteristics, Is the meat processing conveyor, food processing conveyor, packaging conveyor, belt sorting conveyor, assembly line, agricultural belt conveyor, warehouse handling belt telescopic car and other large load conveying equipment the best choice, at the same time its stainless steel design can cope with the health environment, wet environment.



Product characteristics：

►Material
All stainless steel

►Low noise
Permanent magnet synchronous motor and high alloy steel grinding gear, to create extremely low noise.

►High Standards in protection
Double shaft sealing system, Sealing system-degree of protection IP66/67.

►Motors
Permanent magnet synchronous motor, energy saving and high efficiency.

►Oiling
Pre lubricated with oil, Oil change is required every 50,000 hours of operation.



Product sample parameter

AMROLL AC synchronous Drum motor DM216F-3× 380V/114Hz

Power
[kw/hp]

Motor
series

Gear
series

Gear ratio

Nominal band speed
[m/s]

Torque
[Nm]

Traction force
[N]

Rated current
[A]

Minimum barrel length
[mm]

Minimum barrel length
Weight[kg]

 4.00/5.44

4

3

48.58

0.80

568.98

5244

8.20

510

76

41.26

0.94

483.25

4454

31.73

1.22

371.63

3425

27.24

1.42

319.04

2940

2

24.61

1.60

291.15

2683

20.11

1.92

237.91

2193

15.46

2.50

182.90

1686

 5.50/7.33

4

2

24.61

1.60

372.40

3432

10.00

510

77

20.11

1.92

304.31

2804

15.46

2.50

233.94

2156

Based on the minimum drum length weight, the weight of the electric drum increases by 3.75kg for every 100mm lengthening of the drum.



DM216F Option Sheet -- Drum Motor/Driven Roller

Component description

Drum motor

Driven drum

Cylinder





Stainless steel (Standard 304) coronal cylinder

1

1

Stainless steel (standard 304) straight barrel

2

2

Stainless steel (Standard 304) straight barrel + key

2

2

Front and rear end covers





Stainless steel (standard 304) end cover

1

1

Front and rear axle





Stainless steel (standard 304) shaft

1

1

Coating





Black flat vulcanized adhesive

2

2

White flat vulcanized adhesive

2

2

Polyurethane flat vulcanization coating

2

2

Sprocket with mesh can be added

2

2

V-groove adhesive

3

3

Motor





Permanent magnet synchronous motor

1



Voltage3*380V/114Hz

1



Lubricating oil





Food grade oil (FDA  And USDA)

2



Electrical connection





Stainless steel straight outlet

1



Stainless steel elbow outlet

2



Stainless steel terminal box

3



PVC  cable

1



Low-smoke halogen free cable

2



Shielded cable (frequency converter)

3



Other options





Reverse check

2



Electromagnetic brake

2



Can be installed vertically or tilted

3



Connected frequency converter

1 (Sparks Frequency converter is recommended)



1- Standard assembly options      2- Non-standard common options      3- Restrictive options, selection should be confirmed with the manufacturer

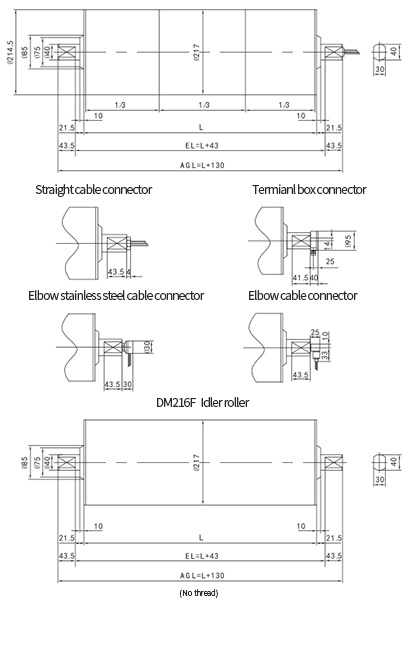

Comprehensive outline dimensional drawing

DM216F Drum motor
