Steel conveyor rollers Series M120

Can be used for transportation such as cardboard, bins, drums or tires, for implementing gravity or sliding conveyor roller lines, can also be used for belt conveyor idlers (non-tensioned or corner position). Models with steel bearing seat are designed for low temperature or high ambient temperature applications, suitable for the ambient temperature range: -30℃~+80℃.

key word:

M120 series Unpowered roller

Category:

Steel roller M120 series

样册下载：

Tel：

Email：

Product application and characteristics

Product Features：

►Extremely High reliability：
The product operates well in various environments, including high and low temperatures, and has low requirements for the usage environment；

►Low noise
The precision ball bearing is fixed in the steel stamping bearing seat, which ensures quiet operation.

►Side loading
The Tube end is designed with a rounded shape, which enables easy loading of materials from the side and eliminates axial forces through the use of ball bearings.

►Stable structure
The non-drive side bearing components can be axially fixed in multiple ways, and the perfect closing radius is added to achieve a stable product structure.

►Anti-static design
The entire series can be made anti-static.

Model Parameters：

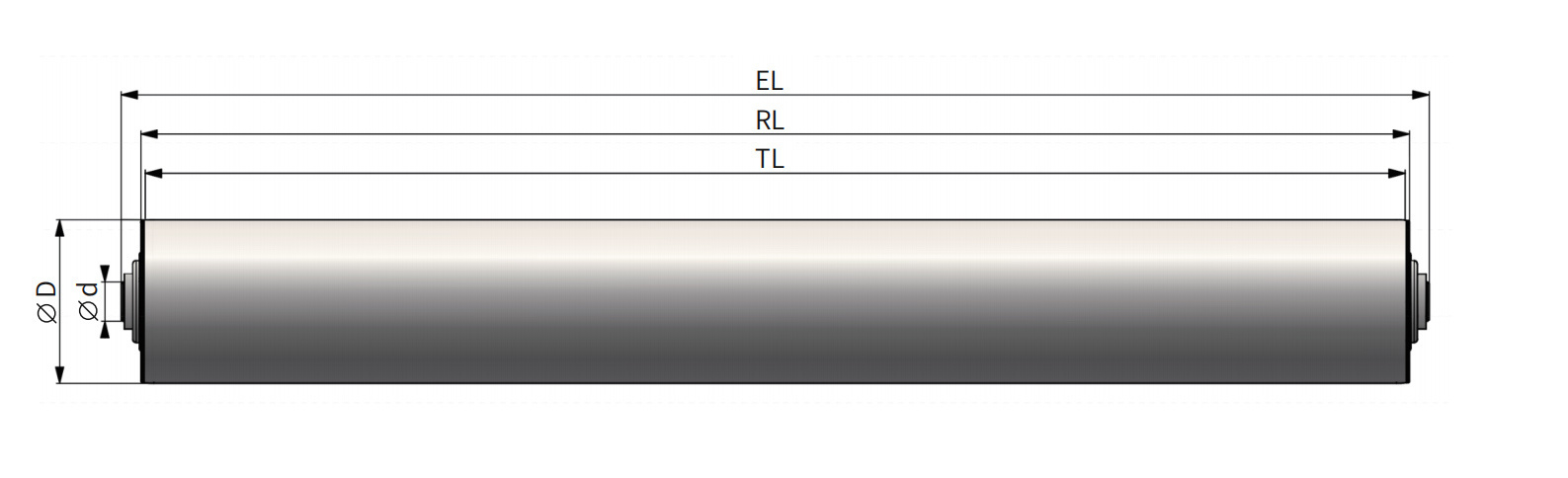

►Tube Data
φ50x1.5mm, 60x2.0mm, material is Q235B or stainless steel 304

►Shaft Data
φ12mm (for tube withφ50 ), 15mm (for tube withφ60), material is 45# or stainless steel 304

►End Cap Data
Precision ball bearings are fixed in steel stamping bearing seats

►Bearing Data
6001Z, 6002Z, made of bearing steel or stainless steel

►Processing Technology
Internal and external thread, milling, spring-pressed shaft, surface knurling, punching, etc.

Application area：

Can be applied to the transportation of items such as cardboard, containers, drums, or tires, suitable for gravity or sliding conveyor roller lines.Can also be used for belt conveyor idlers (non-tensioning or with wrap angles). The models with steel bearing seats are designed for low-temperature or high-temperature environments.

Temperature range: -30℃~+80℃.

Load capacity

Ø Tube/thickness （mm）	Ø Shaft (mm）	Installation Method	Maximum static load (kg) for installation length (mm)
Ø Tube/thickness （mm）	Ø Shaft (mm）	Installation Method	200	400	600	800	1000	1200	1400	1600
φ50X1.5	φ12	Internal thread	150	150	150	150	95	65	50	35
φ50X1.5	φ12	Spring loaded	145	115	75	55	45	35	30	25
φ60X2.0	φ15	Internal thread	230	230	230	230	230	160	115	90
φ60X2.0	φ15	Spring loaded	220	220	175	130	100	85	70	65
