TM80A asynchronous oil immersed drum motor,The design is based on the space limitation requirement of conveying equipment and the high efficiency application of transmission system.This kind of drum motor is typically used in: ●Mini X-ray machines ●Package machines ●Dynamic weighing equipment ●Belt conveyors

key word:

TM80A Asynchronous oil immersed electric roller

Category:

TM80A

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product Application:

TM80A asynchronous oil immersed drum motor,The design is based on the space limitation requirement of conveying equipment and the high efficiency application of transmission system.This kind of drum motor is typically used in:
●Mini X-ray machines
●Package machines
●Dynamic weighing equipment
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● All motors with thermal protection
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product Sample Parameters

AMROLL Drum Motor TM80A-1*230V/50Hz

Power
[kW/hp]

No.of
poles

Gear
stages

Gear
ratio

Nominal
belt speed
[m/s]

Full load
torque
[Nm]

Full load
belt pull
[N]

Full load
current
[A]

Min.
face width
(L) [mm]

Min.L
Weight
[kg]

0.034/0.045

4

3

74.79

0.08

16.41

400

0.48

340

6.5

55.11

0.1

13.11

320

37.89

0.15

8.73

214

2

28.95

0.2

6.55

160

21.33

0.27

4.85

118

14.67

0.4

3.28

80

11.81

0.5

2.62

64

0.06/0.08

2

3

74.79

0.15

15.42

391

0.57

340

6.5

55.11

0.2

11.01

269

37.89

0.3

7.71

188

2

28.95

0.39

5.91

142

21.33

0.52

4.37

104

14.67

0.76

2.95

71

11.81

0.95

2.36

56

0.085/0.115

2

3

74.79

0.16

19.28

489

0.66

340

6.5

55.11

0.22

13.77

336

37.89

0.32

9.63

236

2

28.95

0.41

7.38

177

21.33

0.56

5.46

131

14.67

0.81

3.69

89

11.81

1.01

2.96

71

0.11/0.15

2

3

55.11

0.22

22.02

538

0.99

340

6.5

37.89

0.32

15.42

376

2

28.95

0.42

11.82

284

21.33

0.56

8.74

208

14.67

0.82

5.9

142

11.81

1.02

4.72

112

At the min. face width (L), the total weight of a drum motor grows approx.1.2 kg per 100 mm.



TM80A optional list-drum motor/idler pulley

Specifications

Drum motor

Idler pulley

Shell





Mild steel crowned

1

1

Mild steel cylindrical

2

2

Stainless steel(std. 304) crowned

2

2

Stainless steel(std. 304) cylindrical

2

2

End housing (front & rear)





Cast aluminium

1

1

Shaft (front & rear)





Mild steel

1

1

Stainless steel(std. 304)

2

2

Gear box & rear flange





Cast aluminium

1

1

Electrical motors





1 or 3-phase asynchronous motor

1



Voltage 1*230V/50Hz or 3*400v/50Hz

1



Most common global voltages at 50 or 60 Hz

1



Thermal protection

1



Lubricating oil





No.150 gear oil

1



Low temperature oil

2



Food grade oil & grease (FDA and USDA)

2



Electrical connection





Straight cable connector

1



Elbow stainless steel cable connector

2



Oil resistant PVC cable

1



LS halogen-free cable

2



Other options





Mechanical backstop

2



1-fitted as standard  2-optional extras

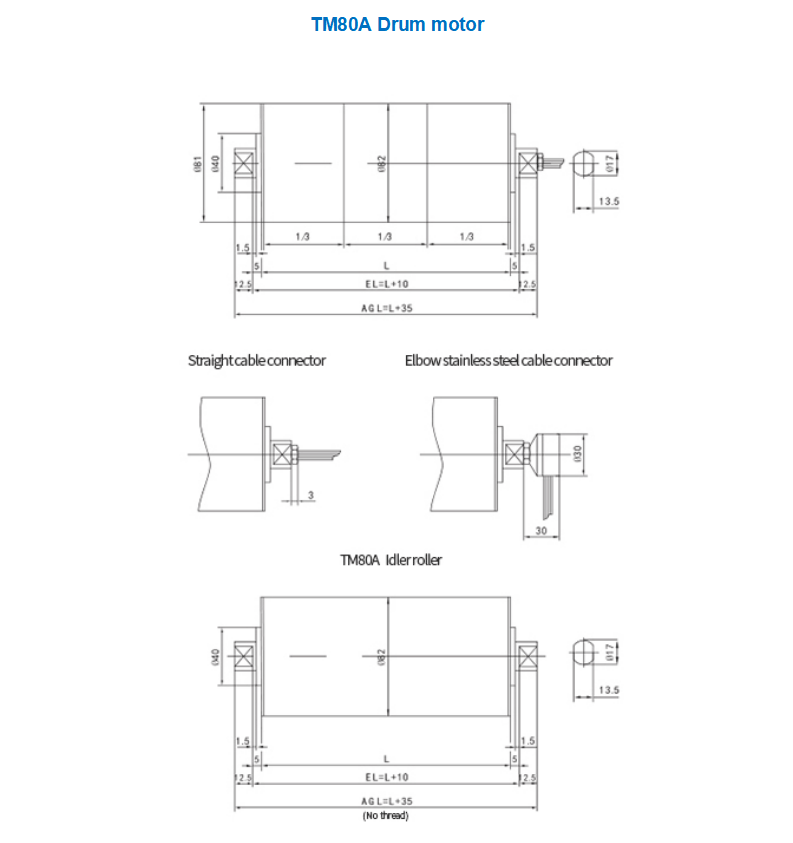

Outline Dimension Drawing of Product
