TM113A Single Phase Current

TM113A asynchronous oil immersed drum motor,can be used for transmission system space, low noise and high power have special requirements of the transmission equipment, this product in the limited transmission system space at the same time to meet the high power operation conditions and low noise demand, its ultra-high cost performance has won the unanimous favor of customers.This kind of drum motor is typically used in: ●X-ray machines （airport and station） ●Baggage check-in counters at airports ●Packaging machine ●Dynamic weighing equipment ●Belt conveyors

key word:

Asynchronous oil immersed electric roller TM113A

Category:

TM113A

样册下载：

Tel：

Email：

Product application and characteristics

Product Application:

TM113A asynchronous oil immersed drum motor,can be used for transmission system space, low noise and high power have special requirements of the transmission equipment, this product in the limited transmission system space at the same time to meet the high power operation conditions and low noise demand, its ultra-high cost performance has won the unanimous favor of customers.This kind of drum motor is typically used in:
●X-ray machines （airport and station）
●Baggage check-in counters at airports
●Packaging machine
●Dynamic weighing equipment
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● All motors with thermal protection
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.

Product Sample Parameters

*AMROLL Drum Motor TM113A-1230V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]


0.12/0.16	4	3	60.66	0.15	49.04	868	0.84	335	13
			49.36	0.18	39.83	705
			41.07	0.21	35.41	627
			37.7	0.23	31.87	564
			31.59	0.27	25.49	451
			25.7	0.34	21.24	376
			21.38	0.4	17.68	313
			19.63	0.44	15.93	282
		2	15.71	0.55	12.88	230
			13.07	0.65	10.85	192
			12	0.71	10.34	183
	6	3	60.66	0.08	79.67	1410	1	360	15
	6	3	49.36	0.1	63.73	1128	1	360	15
0.15/0.20	4	3	60.66	0.14	61.3	1085	1.24	335	13
			49.36	0.17	49.78	881
			41.07	0.21	44.24	783
			37.7	0.22	39.83	705
			31.59	0.26	31.87	564
			25.7	0.33	26.56	470
			21.38	0.39	22.15	392
			19.63	0.43	19.94	353
		2	15.71	0.54	16.27	288
			13.07	0.64	13.56	240
			12	0.7	12.94	229
0.18/0.24	4	3	60.66	0.14	73.56	1302	1.4	345	14
			49.36	0.17	59.78	1058
			41.07	0.21	53.11	940
			37.7	0.22	47.8	846
			31.59	0.26	38.25	677
			25.7	0.33	31.87	564
			21.38	0.39	26.56	470
			19.63	0.43	23.9	423
		2	15.71	0.54	19.49	345
			13.07	0.64	16.27	288
			12	0.7	15.48	274
0.23/0.31	4	3	49.36	0.17	76.33	1351	1.67	360	15
			41.07	0.2	67.86	1201
			37.7	0.22	61.08	1081
			31.59	0.26	48.87	865
			25.7	0.32	40.74	721
			21.38	0.38	33.96	601
			19.63	0.42	30.57	541
		2	15.71	0.53	24.97	442
			13.07	0.63	20.79	368
			12	0.68	19.78	350
At the min. face width (L), the total weight of a drum motor grows approx.2kg per 100 mm.

TM113A optional list-drum motor/idler pulley

Specifications	Drum motor	Idler pulley
Shell
Mild steel crowned	1	1
Mild steel cylindrical	2	2
End housing (front & rear)
Cast aluminium	1	1
Shaft (front & rear)
Mild steel	1	1
Stainless steel(std. 304)	2	2
Gear box & rear flange
Cast aluminium	1	1
Rubber lagging
Hot vulcanized black smooth rubber lagging	2	2
White and blue rubber lagging in food quality	2	2
Urethane lagging	2	2
Sprockets for modular belting	2	2
V-grooves in the rubber lagging	3	3
Electrical motors
1 or 3-phase asynchronous motor	1
Voltage 1230V/50Hz or 3400v/50Hz	1
Dual voltage motor	2
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
No.150 gear oil	1
Low temperature oil	2
Food grade oil & grease (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow cable connector	2
Elbow stainless steel cable connector	3
Aluminium terminal box	2
Stainless steel terminal box	3
Oil resistant PVC cable	1
LS halogen-free cable	2
Screened cable (for VFD and brakes)	3
Other options
Mechanical backstop	2
Electromagnetic brake	2
Modified for vertical or angled mounting	3
Operation with VFD	2
1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

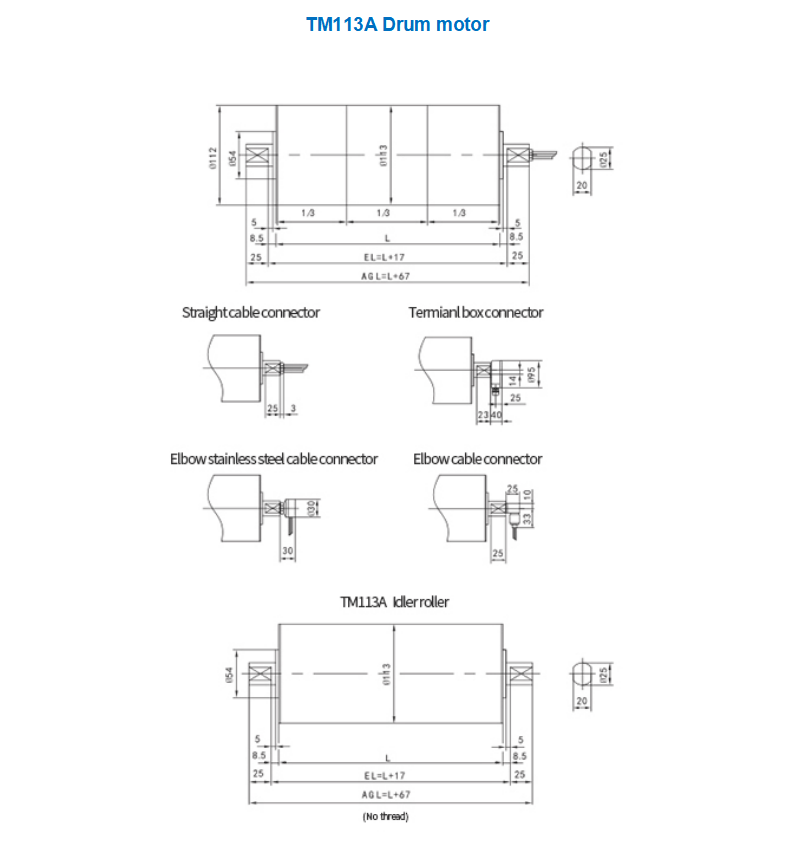

Outline Dimension Drawing of Product

TM113A Three Phase Current

None
