TM165H Three Phase Current

TM165H drum motor uses three-phase asynchronous motor. It is mainly used for belt conveying equipment with heavy load.With characteristics of strong shape, impact resistance and strong torque,it is the best choice of large load conveying equipment.This kind of drum motor is typically used in: ●Baggage check-in counters at airports ●Package machines ●Postal sorter ●Warehousing and vehicle loading ●Assembly line ●Belt conveyor for agricultural products ●Belt conveyors

key word:

Asynchronous oil immersed electric roller TM165H

Category:

TM165H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product Application:

TM165H drum motor uses three-phase asynchronous motor. It is mainly used for belt conveying equipment with heavy load.With characteristics of strong shape, impact resistance and strong torque,it is the best choice of large load conveying equipment.This kind of drum motor is typically used in:
●Baggage check-in counters at airports
●Package machines
●Postal sorter
●Warehousing and vehicle loading
●Assembly line
●Belt conveyor for agricultural products
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product Sample Parameters

AMROLL Drum Motor TM165H-3 *400V/50Hz

Power
[kW/hp]

No.of
poles

Gear
stages

Gear
ratio

Nominal
belt speed
[m/s]

Full load
torque
[Nm]

Full load
belt pull
[N]

Full load
current
[A]

Min.
face width
(L) [mm]

Min.L
Weight
[kg]

0.25/0.34

8

3

62.37

0.1

193.88

2350

1.32

470

36

46.56

0.13

149.13

1808

39.31

0.16

121.17

1469

28.71

0.21

96.94

1175

24.23

0.25

77.55

940

2

19.64

0.31

61.88

750

14.66

0.42

49.5

600

12.38

0.5

39.6

480

0.37/0.50

4

3

62.37

0.2

143.47

1739

0.98

420

36

46.56

0.26

114.77

1391

39.31

0.31

89.67

1087

28.71

0.42

71.73

870

24.23

0.5

57.39

696

2

19.64

0.62

46.51

564

14.66

0.82

36.63

444

12.38

1

29.3

355

6

3

62.37

0.13

230.59

2795

1.25

420

36

46.56

0.17

168.79

2046

8

3

62.37

0.1

308.06

3734

1.58

470

43

46.56

0.13

229.94

2787

39.31

0.16

194.14

2353

28.71

0.21

143.47

1739

24.23

0.25

114.77

1391

2

19.64

0.31

91.58

1110

14.66

0.41

73.26

888

12.38

0.5

58.61

710

0.55/0.75

4

3

62.37

0.19

229.38

2780

1.45

420

49

46.56

0.26

170.61

2068

39.31

0.31

144.56

1752

28.71

0.42

106.63

1293

24.23

0.5

85.31

1034

2

19.64

0.61

69.14

838

14.66

0.82

54.45

660

12.38

1

43.56

528

6

3

62.37

0.13

328.1

3977

1.76

470

51

46.56

0.17

250.9

3041

0.75/1.02

4

3

62.37

0.2

290.81

3525

2

420

49

46.56

0.27

232.65

2820

39.31

0.32

192.23

2330

28.71

0.43

145.41

1763

24.23

0.51

116.33

1410

2

19.64

0.63

94.29

1143

14.66

0.84

74.25

900

12.38

1

59.4

720

6

3

46.56

0.17

353.72

4288

2.23

470

51

1.10/1.50

2

3

62.37

0.4

213.26

2585

2.24

420

49

46.56

0.54

170.61

2068

39.31

0.63

133.29

1616

28.71

0.87

106.63

1293

24.23

1.03

85.31

1034

2

19.64

1.26

69.14

838

14.66

1.7

54.45

660

12.38

2

43.56

528

4

3

46.56

0.26

341.22

4136

2.83

470

51

39.31

0.31

285.3

3458

28.71

0.43

213.26

2585

24.23

0.5

170.61

2068

2

19.64

0.62

143.96

1745

14.66

0.83

106.63

1293

12.38

1

85.31

1034

1.50/ 2.04

4

3

28.71

0.43

280.74

3403

3.55

470

51

24.23

0.51

232.65

2820

2

19.64

0.63

188.57

2286

14.66

0.84

148.5

1800

12.38

1

118.8

1482

2.20/ 3.00

2

3

46.56

0.53

341.22

4136

4.33

470

51

39.31

0.62

283.39

3435

28.71

0.85

213.26

2585

24.23

1

170.61

2068

2

19.64

1.25

138.29

1676

14.66

1.68

108.9

1320

12.38

2

87.12

1056

At the min. face width (L), the total weight of a drum motor grows approx.4.0kg per 100 mm.



TM165H optional list-drum motor/idler pulley

Specifications

Drum motor

Idler pulley

Shell





Mild steel crowned

1

1

Mild steel cylindrical

2

2

Stainless steel(std. 304) crowned

2

2

Stainless steel(std. 304) cylindrical

2

2

End housing (front & rear)





Cast iron

1

1

Cast stainless steel

2

2

Shaft (front & rear)





Mild steel

1

1

Stainless steel(std. 304)

2

2

Gear box & rear flange





Cast iron

1

1

Rubber lagging





Hot vulcanized black smooth rubber lagging

2

2

White and blue rubber lagging in food quality

2

2

Urethane lagging

2

2

Sprockets for modular belting

2

2

V-grooves in the rubber lagging

3

3

Electrical motors





3-phase asynchronous motor

1



3*400V/50Hz

1



Dual voltage motor

2



Most common global voltages at 50 or 60 Hz

1



Thermal protection

1



Lubricating oil





No.150 gear oil

1



Low temperature oil

2



Food grade oil & grease (FDA and USDA)

2



Electrical connection





Straight cable connector

1



Elbow stainless steel cable connector

2



Terminal box connector

2



Oil resistant PVC cable

1



LS halogen-free cable

2



Screened cable (for VFD and brakes)

3



Other options





Mechanical backstop

2



Electromagnetic brake

2



Modified for vertical or angled mounting

3



Operation with VFD

2



1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

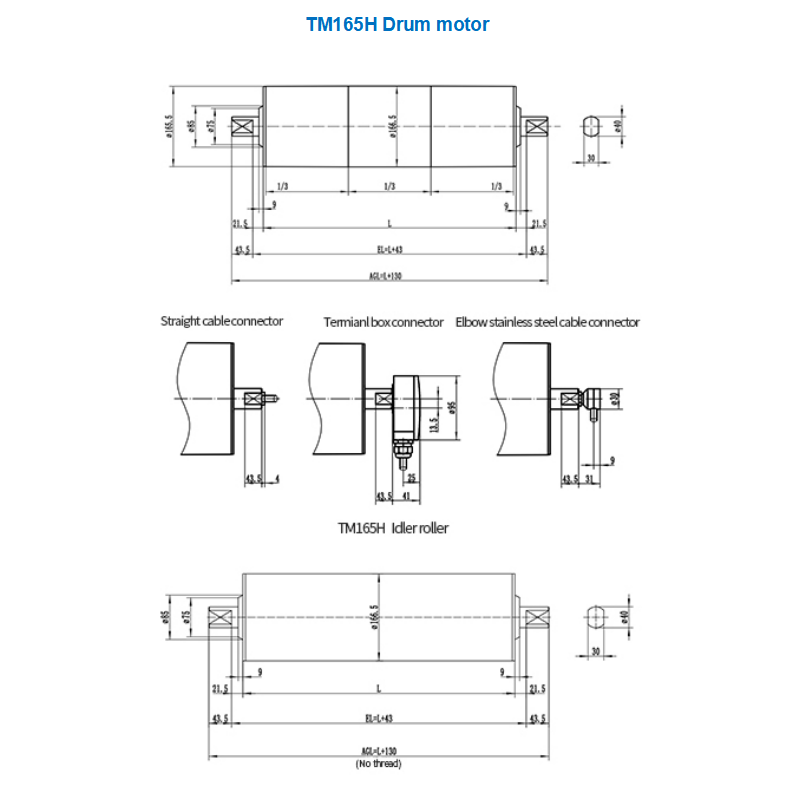

Outline Dimension Drawing of Product
