TM270H Three Phase Current

TM270H drum motor is a heavy roller designed for conveying single heavy items or bulk materials.Its maximum power can reach 5.5kW and its speed can range from 0.62 to 3.37m/s.This kind of drum motor is typically used in: ●Postal sorter ●Belt conveyor for agricultural products ●Bulk handing conveyors ●Brick and wooden making conveyors ●Steep incline conveyors

key word:

Asynchronous oil immersed electric roller TM270H

Category:

TM270H

样册下载：

Tel：

Email：

Product application and characteristics

Product Application:

TM270H drum motor is a heavy roller designed for conveying single heavy items or bulk materials.Its maximum power can reach 5.5kW and its speed can range from 0.62 to 3.37m/s.This kind of drum motor is typically used in:
●Postal sorter
●Belt conveyor for agricultural products
●Bulk handing conveyors
●Brick and wooden making conveyors
●Steep incline conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.

Product Sample Parameters

*AMROLL Drum Motor TM270H-3 400V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]


4.00/5.36	4	3	32.68	0.62	841.02	6230	8.8	700	129
			26.59	0.77	684.25	5069
		2	19.78	1.03	514.2	3809			127
			16.17	1.26	420.34	3114
			15.01	1.36	390.32	2891
			12.21	1.67	317.56	2352
5.50/7.38	2	3	50.99	0.81	893	6615	10.5	700	129
			38.52	1.07	674.64	4997
			32.68	1.26	572.24	4239
			26.59	1.55	465.57	3449
		2	19.78	2.08	349.87	2592			127
			16.17	2.54	286.01	2119
			15.01	2.74	265.58	1967
			12.21	3.37	216.07	1601
At the min. face width (L), the total weight of a drum motor grows approx.5.35kg per 100 mm.

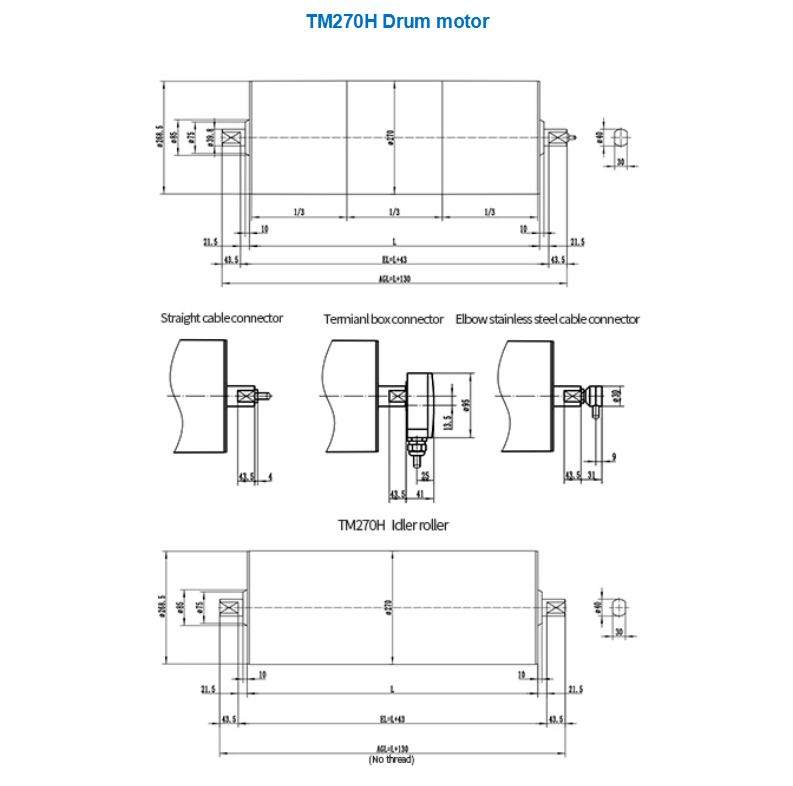

TM270H optional list-drum motor/idler pulley

Specifications	Drum motor	Idler pulley
Shell
Mild steel crowned	1	1
Mild steel cylindrical	2	2
Stainless steel(std. 304) crowned	2	2
Stainless steel(std. 304) cylindrical	2	2
End housing (front & rear)
Cast iron	1	1
Cast stainless steel	2	2
Shaft (front & rear)
Mild steel	1	1
Stainless steel(std. 304)	2	2
Gear box & rear flange
Cast iron	1	1
Rubber lagging
Hot vulcanized black smooth rubber lagging	2	2
White and blue rubber lagging in food quality	2	2
Urethane lagging	2	2
Sprockets for modular belting	2	2
V-grooves in the rubber lagging	3	3
Electrical motors
3-phase asynchronous motor	1
3*400V/50Hz	1
Dual voltage motor	2
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
No.150 gear oil	1
Low temperature oil	2
Food grade oil & grease (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow stainless steel cable connector	2
Terminal box connector	2
Oil resistant PVC cable	1
LS halogen-free cable	2
Screened cable (for VFD and brakes)	3
Other options
Mechanical backstop	2
Electromagnetic brake	2
Modified for vertical or angled mounting	3
Operation with VFD	2
1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer
