TM216H asynchronous oil immersed drum motor,It is a heavy roller designed for conveying single heavy items or bulk materials. Its power range is 0.37kw to 4.0kw.This kind of drum motor is typically used in: ●Packaging machine ●Dynamic weighing equipment ●Postal sorter ●Warehousing and vehicle loading ●Belt conveyor for agricultural products ●Bulk handing conveyors ●Brick and wooden making conveyors ●Steep incline conveyors ●Belt conveyors

key word:

Asynchronous oil immersed electric roller TM216H

Category:

TM216H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product Application:

TM216H asynchronous oil immersed drum motor,It is a heavy roller designed for conveying single heavy items or bulk materials. Its power range is 0.37kw to 4.0kw.This kind of drum motor is typically used in:
●Packaging machine
●Dynamic weighing equipment
●Postal sorter
●Warehousing and vehicle loading
●Belt conveyor for agricultural products
●Bulk handing conveyors
●Brick and wooden making conveyors
●Steep incline conveyors
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product Sample Parameters

AMROLL Drum Motor TM216H-3 *400V/50Hz

Power
[kW/hp]

No.of
poles

Gear
stages

Gear
ratio

Nominal
belt speed
[m/s]

Full load
torque
[Nm]

Full load
belt pull
[N]

Full load
current
[A]

Min.
face width
(L) [mm]

Min.L
Weight
[kg]

0.37/0.50

8

3

77.33

0.11

375.62

3478

1.64

510

56

63.18

0.13

288.94

2675

48.58

0.17

234.77

1274

41.26

0.2

187.81

1739

31.73

0.26

150.25

1391

2

24.61

0.34

119.88

1110

20.11

0.42

95.9

888

15.46

0.54

76.72

710

0.55/0.75

8

3

77.33

0.1

558.36

5170

1.67

510

58

63.18

0.13

429.51

3977

48.58

0.16

348.98

3231

41.26

0.19

279.18

2585

31.73

0.25

223.34

2068

2

24.61

0.32

178.2

1650

20.11

0.4

142.56

1320

15.46

0.51

114.05

1056

0.75/1.02

8

3

63.18

0.13

585.69

5423

2.38

510

58

48.58

0.16

475.88

4406

41.26

0.19

380.7

3525

31.73

0.25

304.56

2820

2

24.61

0.32

243

2250

20.11

0.4

194.4

1800

15.46

0.51

155.52

1440

1.10/1.50

4

3

77.33

0.21

558.36

5179

2.27

510

58

63.18

0.26

446.69

4136

48.58

0.34

348.98

3231

41.26

0.4

279.18

2585

31.73

0.52

228.1

2112

2

24.61

0.67

181.03

1676

20.11

0.82

142.56

1320

15.46

1.1

114.05

1056

6

3

63.18

0.17

670.87

6212

2.86

510

61

48.58

0.22

558.36

5179

41.26

0.26

446.69

4136

31.73

0.34

348.98

3231

2

24.61

0.44

279.18

2585

20.11

0.54

228.1

2112

15.46

0.7

181.03

1676

1.50/2.04

4

3

63.18

0.26

609.12

5640

2.87

510

61

48.58

0.34

475.88

4406

41.26

0.4

380.7

3525

31.73

0.52

304.56

2820

2

24.61

0.66

246.86

2285

20.11

0.81

194.4

1800

15.46

1.1

155.52

1440

2.20/3.00

4

3

48.58

0.34

698

6463

4.86

510

62

41.26

0.4

558.36

5170

31.73

0.52

446.69

4136

2

24.61

0.66

362.06

3352

20.11

0.81

285.12

2640

15.46

1.1

228.1

2112

3.50/4.76

4

3

31.73

0.52

609.12

5640

7.69

510

73

2

24.61

0.67

475.88

4406

20.11

0.81

380.7

3525

15.46

1.1

304.56

2820

4.00/5.44

2

3

41.26

0.8

507.6

4700

8.63

510

73

31.73

1

406.08

3760

2

24.61

1.32

329.14

3048

20.11

1.6

259.2

2400

15.46

2.1

207.36

1920

At the min. face width (L), the total weight of a drum motor grows approx.5kg per 100 mm.



TM216H optional list-drum motor/idler pulley

Specifications

Drum motor

Idler pulley

Shell





Mild steel crowned

1

1

Mild steel cylindrical

2

2

Stainless steel(std. 304) crowned

2

2

Stainless steel(std. 304) cylindrical

2

2

End housing (front & rear)





Cast iron

1

1

Cast stainless steel

2

2

Shaft (front & rear)





Mild steel

1

1

Stainless steel(std. 304)

2

2

Gear box & rear flange





Cast iron

1

1

Rubber lagging





Hot vulcanized black smooth rubber lagging

2

2

White and blue rubber lagging in food quality

2

2

Urethane lagging

2

2

Sprockets for modular belting

2

2

V-grooves in the rubber lagging

3

3

Electrical motors





3-phase asynchronous motor

1



3*400V/50Hz

1



Dual voltage motor

2



Most common global voltages at 50 or 60 Hz

1



Thermal protection

1



Lubricating oil





No.150 gear oil

1



Low temperature oil

2



Food grade oil & grease (FDA and USDA)

2



Electrical connection





Straight cable connector

1



Elbow stainless steel cable connector

2



Terminal box connector

2



Oil resistant PVC cable

1



LS halogen-free cable

2



Screened cable (for VFD and brakes)

3



Other options





Mechanical backstop

2



Electromagnetic brake

2



Modified for vertical or angled mounting

3



Operation with VFD

2



1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

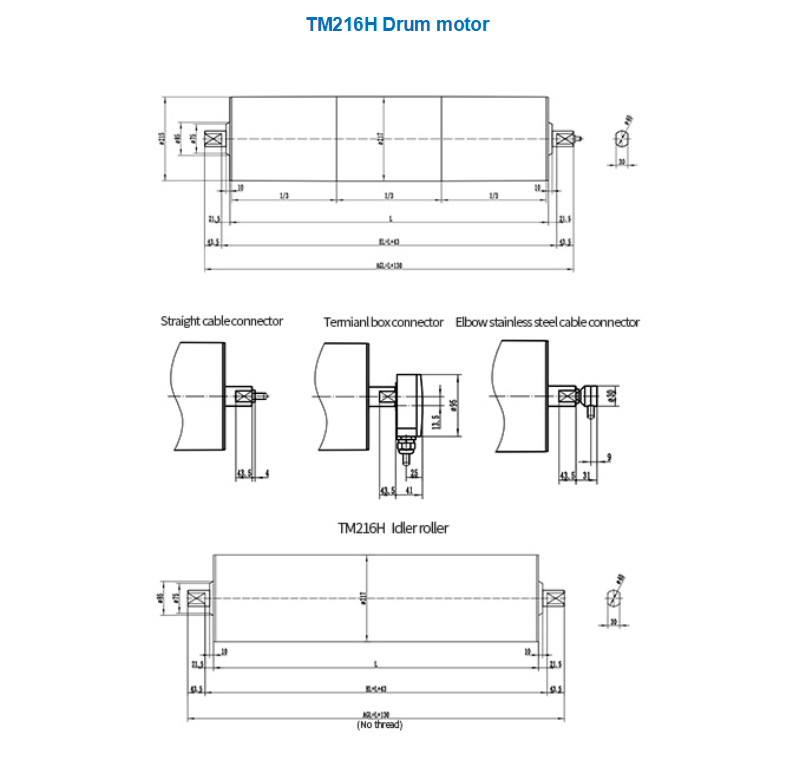

Outline Dimension Drawing of Product
