TM138H Three Phase Current

TM138H asynchronous oil immersed drum motor.It is mainly used for belt conveying equipment with medium load,the effective power of its motor is up to 1.10kW.The heavy design makes TM138H more suitable for the belt conveying industry with harsh operating conditions.This kind of drum motor is typically used in: ●E-commerce express ●Belt conveyor for agricultural products ●Belt conveyors ●X-ray machines ●Airport

key word:

Asynchronous oil immersed electric roller TM138H

Category:

TM138H

样册下载：

图片名称

Tel：

18222309122

Email：

info@seaparks.com

Related products
Online inquiry
Product application and characteristics

Product Application:

TM138H asynchronous oil immersed drum motor.It is mainly used for belt conveying equipment with medium load,the effective power of its motor is up to 1.10kW.The heavy design makes TM138H more suitable for the belt conveying industry with harsh operating conditions.This kind of drum motor is typically used in:
●E-commerce express
●Belt conveyor for agricultural products
●Belt conveyors
●X-ray machines
●Airport

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
● Cast aluminium gearbox

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.



Product Sample Parameters

AMROLL Drum Motor TM138H-3 *400V/50Hz

Power
[kW/hp]

No.of
poles

Gear
stages

Gear
ratio

Nominal
belt speed
[m/s]

Full load
torque
[Nm]

Full load
belt pull
[N]

Full load
current
[A]

Min.
face width
(L) [mm]

Min.L
Weight
[kg]

0.25/0.34

6

3

58.87

0.11

149.09

2161

0.99

400

24

53.21

0.13

135.1

1958

48.36

0.14

122.47

1775

0.37/ 0.50

2

2

16.87

1.19

21.87

317

0.92

350

22

15.33

1.32

19.46

282

4

3

58.87

0.17

143.38

2078

1.05

350

22

53.21

0.19

129.59

1878

48.36

0.21

119.99

1739

37.23

0.28

90.67

1314

29.33

0.35

71.44

1035

26.51

0.39

64.57

936

24.1

0.42

60.03

870

18.55

0.55

45.18

655

2

16.87

0.6

41.51

602

15.33

0.67

38.92

564

11.8

0.87

30.64

444

6

3

58.87

0.11

219.92

3187

1.5

400

24

53.21

0.13

199.96

2898

48.36

0.14

180.65

2618

0.55/0.75

2

3

58.87

0.34

107.96

1565

1.28

350

22

53.21

0.38

99.08

1436

48.36

0.42

89.22

1293

37.23

0.54

68.27

989

29.33

0.69

55.75

808

26.51

0.76

49.54

718

24.1

0.84

44.57

646

18.55

1.1

35.67

517

2

16.87

1.2

32.45

471

15.33

1.3

28.91

419

11.8

1.7

22.77

330

4

3

58.87

0.17

217.07

3146

1.57

400

24

53.21

0.19

198.17

2872

48.36

0.21

178.37

2585

37.23

0.27

137.26

1989

29.33

0.34

108.16

1567

26.51

0.38

99.08

1436

24.1

0.42

89.22

1293

18.55

0.54

68.39

991

2

16.87

0.6

62.84

911

15.33

0.65

57.82

838

11.8

0.85

45.54

660

0.75/1.02

2

3

58.87

0.34

149.09

2161

1.63

400

24

53.21

0.38

135.1

1958

48.36

0.41

121.65

1763

37.23

0.54

94.28

1366

29.33

0.68

76.04

1102

26.51

0.75

67.55

979

24.1

0.83

60.79

881

18.55

1.08

48.65

705

2

16.87

1.18

44.37

643

15.33

1.3

39.4

571

11.8

1.68

31.05

450

4

3

48.36

0.21

243.23

3525

2.11

400

24

37.23

0.27

188.56

2733

29.33

0.34

148.57

2153

26.51

0.38

135.1

1958

24.1

0.42

121.65

1763

18.55

0.54

93.95

1362

2

16.87

0.6

86.32

1251

15.33

0.66

78.87

1143

11.8

0.85

62.1

900

1.10/1.50

2

3

48.36

0.41

178.37

2585

2.62

400

24

37.23

0.54

137.63

1995

29.33

0.68

108.44

1572

26.51

0.75

99.08

1436

24.1

0.83

89.22

1293

18.55

1.08

68.57

994

2

16.87

1.18

63.69

923

15.33

1.3

57.82

838

11.8

1.69

45.54

660

At the min. face width (L), the total weight of a drum motor grows approx.3.25kg per 100 mm.



TM138H optional list-drum motor/idler pulley

Specifications

Drum motor

Idler pulley

Shell





Mild steel crowned

1

1

Mild steel cylindrical

2

2

Stainless steel(std. 304) crowned

2

2

Stainless steel(std. 304) cylindrical

2

2

End housing (front & rear)





Cast iron

1

1

Cast stainless steel

2

2

Shaft (front & rear)





Mild steel

1

1

Stainless steel(std. 304)

2

2

Gear box & rear flange





Cast iron

1

1

Rubber lagging





Hot vulcanized black smooth rubber lagging

2

2

White and blue rubber lagging in food quality

2

2

Urethane lagging

2

2

Sprockets for modular belting

2

2

V-grooves in the rubber lagging

3

3

Electrical motors





3-phase asynchronous motor

1



3*400V/50Hz

1



Dual voltage motor

2



Most common global voltages at 50 or 60 Hz

1



Thermal protection

1



Lubricating oil





No.150 gear oil

1



Low temperature oil

2



Food grade oil & grease (FDA and USDA)

2



Electrical connection





Straight cable connector

1



Elbow stainless steel cable connector

2



Terminal box connector

2



Oil resistant PVC cable

1



LS halogen-free cable

2



Screened cable (for VFD and brakes)

3



Other options





Mechanical backstop

2



Electromagnetic brake

2



Modified for vertical or angled mounting

3



Operation with VFD

2



1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

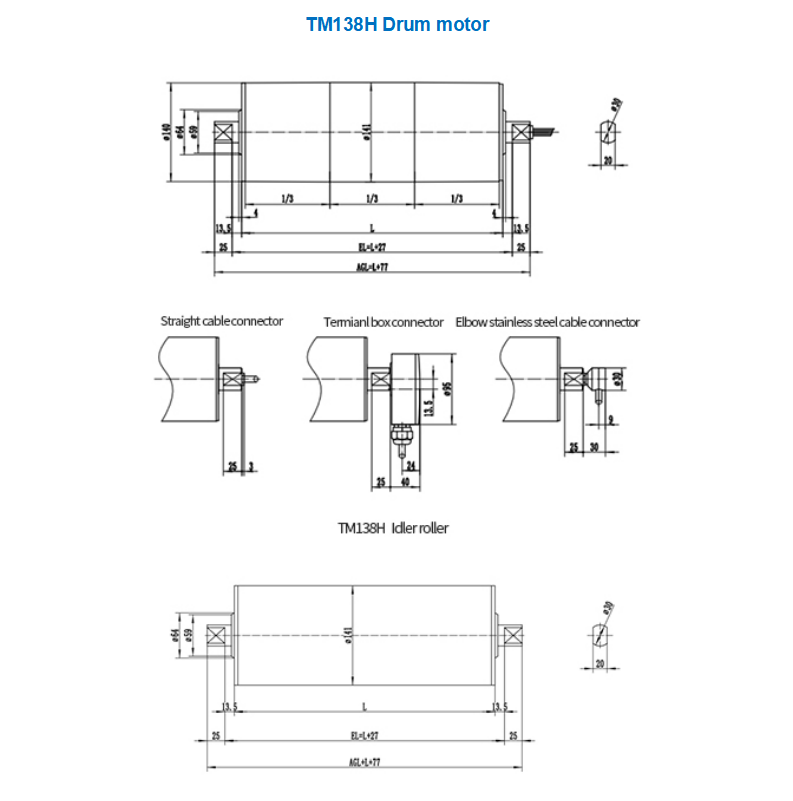

Outline Dimension Drawing of Product
