TM80F Three Phase Current

TM80F asynchronous oil immersed drum motor,The design is based on the space limitation requirement of conveying equipment and the high efficiency application of transmission system.All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in: ●Food processing conveyor ●Pharmaceutical packaging ●Belt conveyors

key word:

TM80F

Category:

TM80F

样册下载：

Tel：

Email：

Product application and characteristics

Product application:

TM80F asynchronous oil immersed drum motor,The design is based on the space limitation requirement of conveying equipment and the high efficiency application of transmission system.All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in:
●Food processing conveyor
●Pharmaceutical packaging
●Belt conveyors

Product Features:

►Drum motor shell
● Mild steel crowned shell treated with anti-rust oil
● The standard shell is coronal and the surface is machined with non-slip threads

►Gear transmission
● Gears machined and honed to AGMA/DIN 6 standards to ensure low noise

►Motor
● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Cable length minimum 1.2 meters outside shaft

►Sealing system
● Double shaft sealing system
● Sealing system-degree of protection IP 66/67

►Oil
● Pre lubricated with oil
● Oil change recommended every 50,000 hours of operation

►Other items
● Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
● Belt speed and face width (L) on request
● International authority CE and UL safety certification
● Non-standard drum motors are available on request.

Product sample parameter

*AMROLL Drum motor TM80F-3 400V/50Hz**
Power [kW/hp]	Motor series	Gear series	Gear Speed ratio	Nominal band speed [m/s]	Torque [Nm]	Traction force [N]	Rated current [A]	Minimum barrel length [mm]	Minimum barrel length weight[kg]
0.04/0.05	4	3	74.79	0.08	18.00	450	0.43	350	6
			55.11	0.10	14.40	360
			37.89	0.15	9.60	240
0.06/0.08	2	3	74.79	0.15	19.28	489	0.30	340	5
			55.11	0.20	13.77	336
			37.89	0.30	9.63	236
		2	28.95	0.39	7.38	177
			21.33	0.52	5.46	131
			14.67	0.76	3.69	89
			11.81	0.95	2.96	71
	4	3	55.11	0.10	28.91	705	0.36	350	6
	4	3	37.89	0.15	19.27	470	0.36	350	6
0.09/0.12	2	3	74.79	0.16	23.13	587	0.43	340	6
			55.11	0.22	16.52	403
			37.89	0.32	11.56	283
		2	28.95	0.41	8.86	212
			21.33	0.56	6.55	157
			14.67	0.82	4.43	106
			11.81	1.01	3.55	85
0.12/0.16	2	3	55.11	0.22	22.02	538	0.53	340	6
		3	37.89	0.32	15.42	376
		2	28.95	0.42	11.82	284
			21.33	0.56	8.74	208
			14.67	0.82	5.90	142
			11.81	1.02	4.72	112
Based on the minimum drum length weight, the weight of the electric drum increases about 1.2kg for every 100mm lengthening of the drum.

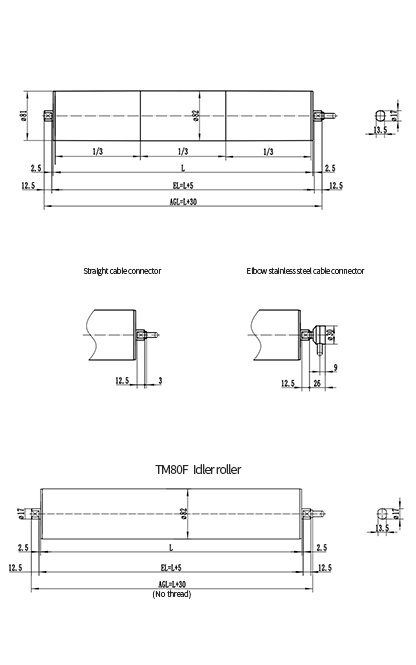

TM80F options table - Drum motor/driven roller

Component description	Drum motor	Driven drum
cylinder
Stainless steel (Standard 304) coronal cylinder	1	1
Stainless steel (standard 304) straight barrel	2	2
Stainless steel (Standard 304) straight barrel + key	2	2
Front and rear end covers
Stainless steel (standard 304) end cover	1	1
Front and rear axle
Stainless steel (standard 304) shaft	1	1
Motor
Single-phase or three-phase asynchronous motor	1
Voltage 1230V/50Hz or 3400V/50Hz	1
Universal voltage at 50Hz or 60Hz	1
Add motor overheat protector	1
Lubricating oil
Food grade Oil (FDA and USDA)	2
Electrical connection
Stainless steel straight outlet	1
Stainless steel elbow outlet	2
PVC cable	1
Low-smoke halogen free cable	2
Other options
Reverse check	2
Connected frequency converter	2
1- Standard assembly options 2- Non-standard common options
